everActive NC-109 Microprocessor Charger.
The everActive NC 109 charger is a unique, specialized design that allows charging from 1 to 4 pieces of 9V Ni-MH batteries - each cell is charged individually.
It allows for charging up to 4 9V batteries simultaneously, in any configuration / combination, of any capacity, from any manufacturer.
The charger has 4 independent charging channels.

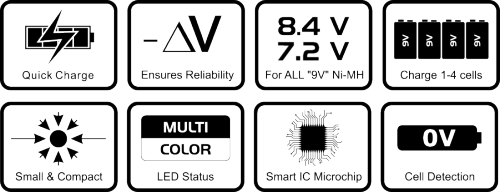

Key features of the NC109 charger:
- fast charging of large quantities of batteries simultaneously - ideal for industrial and professional applications,
- individual LED indicator for charger operation for each cell - with a full charge signal,
- comes with a 100-240V AC power supply, a 12V car adapter is optionally available,
- the charger has protections against short circuits, incorrect battery insertion, and overheating,
- charging process controlled by a microprocessor with -dV detection - fully automatic - ensures full charging for each cell individually,
- fast and safe charging - allows full charging of batteries in about 2-4 hours, regardless of quantity,
- enables recovery and full charging of batteries with high internal resistance, and even those with a terminal voltage close to 0V,
- the charger supports all available 9V Ni-MH batteries on the market - including popular 8.4V and rare 7.2V.
Contents of the set:
- charger,
- power supply,
- instructions in Polish, English, and German.
Product features Professional Ni-MH battery charger everActive NC-109
Producer
everActive
Model / Manufacturer Code
NC109
Supported battery types
- Ni-MH batteries
Supported battery sizes
6F22/HR22/9V(1-4 sztuki o dowolnej pojemności)
Input voltage
- AC 100-240V, 50-60Hz
- 12 V DC / 500 mA
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- 100 mA per channel / slot
Other important product features
- 4 coloured LEDs, with individual indication of full charge
Security
- Microprocessor with ∆V (dV) control
- Before the charger overheats
- Against overload / short circuit
- Detection of damaged and alkaline cells
Charger operating modes
- Charge
Dimensions (W x D x H) [mm]
90 x 80 x 22
Contents
- Charger, AC adapter, manual in Polish, English and German.
Warranty [miesiące]
24
Approximate charging times
- 9V 150mAh ~ 100 min.
- 9V 200mAh ~ 133min.
- 9V 300 mAh ~ 200 min.
Files to download
manual-nc-109
