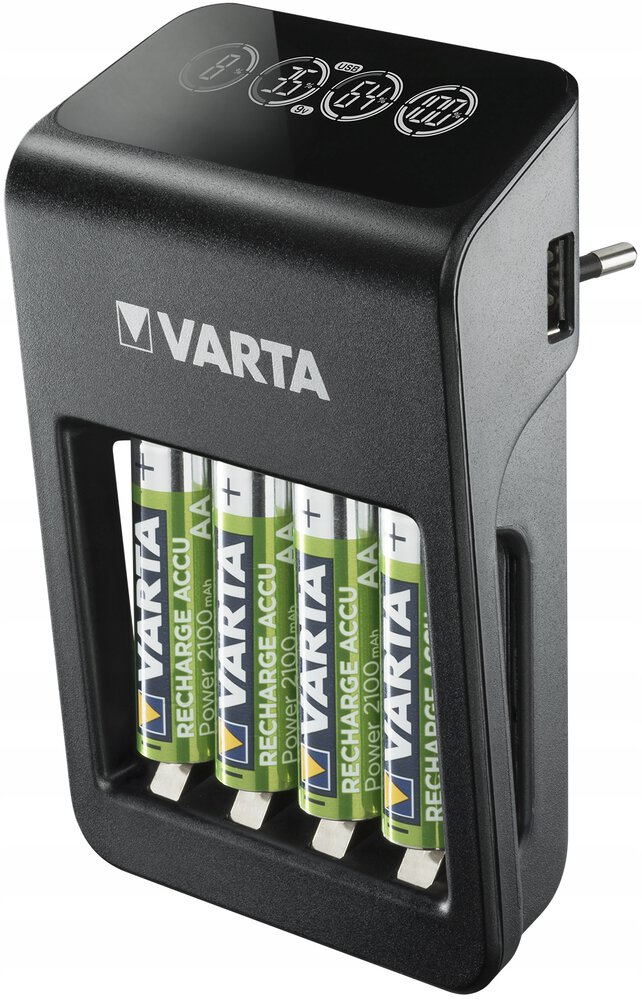

Charger Description:
- Easy and safe charging
- Ergonomic and unique design
- Compact size: built-in plug
- Blue LCD display backlit by LEDs indicates the charge level of batteries and USB cable usage
- Charges at the same time up to 4 AA, AAA cells or 1 9V cell and a USB device!
- Additional USB output
- Numerous safety features: voltage control, timer, short-circuit protection, detection of alkaline batteries
- Charging time: 4 hours*
- 3 years warranty
* Depends on the capacity of the batteries: based on 4 AA 1600 mAh batteries
Advantages of the charger:
- Minus Delta V Method
A method that utilizes the fact that the voltage on the charged cell decreases slightly (- Delta V) right after it is fully charged, after which the charging process is terminated. - USB - Out function
Charge your device using the USB-Out port. - Timer
The timer turns off devices after a specified time regardless of the charging status. - Detection of alkaline batteries and defective rechargeable batteries
Includes criteria for turning off the charger to prevent charging of primary batteries, damaged rechargeable batteries, or batteries with reverse polarity. - Protection against incorrect polarity
Protection against reverse insertion of the rechargeable battery - Technical specifications:
Battery sizes: AAA, AA, 9V, Device
Type of batteries: Nickel-Metal Hydride (Ni-MH)
Battery configuration:
- AAA 1-4
- AA 1-4
- 9V 1
Charging current:
- AAA 200 mA +/- 10%
- AA 450 mA +/- 10%
- 9V 34mA +/- 10%
Set composition:
- Varta PLUG charger PLUS 57687
- 4 Varta R6 / AA 2100mAh rechargeable batteries
Product features Ni-MH Battery Charger VARTA LCD PLUG CHARGER PLUS 57687 + 4 x R6 / AA 2100 mAh
Producer
Varta
Model / Manufacturer Code
LCD PLUG CHARGER 57687
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(1-4 akumulatory),R03 / AAA(1-4 akumulatory),6F22/HR22/9V(1 akumulator)
Input voltage
- AC 220-240 V, 50-60 Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
- Rechargeable batteries 4 x AA 2100 mAh
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
Product features Ni-MH Battery Charger VARTA LCD PLUG CHARGER PLUS 57687 + 4 x R6 / AA 2100 mAh
Producer
Varta
Model / Manufacturer Code
LCD PLUG CHARGER 57687
Supported battery types
- Ni-MH batteries
Supported battery sizes
R6 / AA(1-4 akumulatory),R03 / AAA(1-4 akumulatory),6F22/HR22/9V(1 akumulator)
Input voltage
- AC 220-240 V, 50-60 Hz
Charging method
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
Charging current in CC (main) phase [mA]
- AAA 200 mA +/- 10%
Other important product features
- USB Function - Out
- Charges AA/AAA/9V batteries and a USB device at the same time
Security
- Microprocessor with ∆V (dV) control
- Against overload / short circuit
- Detection of damaged and alkaline cells
- Timer
Charger operating modes
- Charge
Features of LCD Display
- Charge level for each channel
Contents
- Charger
- Rechargeable batteries 4 x AA 2100 mAh
Warranty [miesiące]
36
Approximate charging times
- 4 x AA 1600 mAh rechargeable batteries - 4 hours
Markings / certificates
Ce
