EverActive UC800
is a multi-channel, universal charger that has as many as ten independent channels! Eight channels are used for charging cylindrical batteries Ni-MH, Li-ion, Li-HV, and Li-FePO4. The remaining two channels are used for charging 9V batteries (6F22).
We invite you to familiarize yourself with the presentation of the everActive UC-800 charger
The UC800 charger focuses on maximum compatibility - it can charge any Ni-MH batteries in sizes: R6 AA, R03 AAA, R14 C, SC, and 9V batteries. Additionally, the UC800 also supports Li-ion batteries with a voltage of 3.6/3.7V, their high-voltage alternative - Li-HV, which has a nominal voltage of 3.85V, and Li-FePO4 batteries. For lithium-based batteries, the charger will support sizes such as: 10440, 14500, 14650, 17500, 17670, 18350, 18500, 18650, 20700, 21700 - also protected, 22650, 25500, 26500, 26650, 16340 R-CR123e. The maximum length of the sled is as much as 76mm, which will allow charging the increasingly popular 20700 and 21700 batteries in the version with electronic protection.
Key features:
- ten independent charging channels. Eight are intended for charging cylindrical cells and two channels are designated for 9V batteries (6F22),
- support for all popular cylindrical cells - including the so-called FLAT TOP - with a flat positive terminal and 20700/21700 batteries with protection, the maximum length of the cell is as much as 76mm!
- reanimation function for batteries at 0.00V - the charger can revive almost any battery,
- microprocessor-controlled intelligent, precise CC/CV charging process for Li-ion / Li-FePO4 and CC with dV/PVD for Ni-MH and 6F22/9V,
- support for protected (with PCB) and unprotected cells, also with a flat positive terminal Flat Top,
- adjustable charging current for lithium cells: 8x 0.8A, 6x 1A, 2x 2A max, for Ni-MH we can choose charging currents such as: 8x 0.2/0.5/0.8/1A, for 6F22/9V batteries the charging current is 60mA,

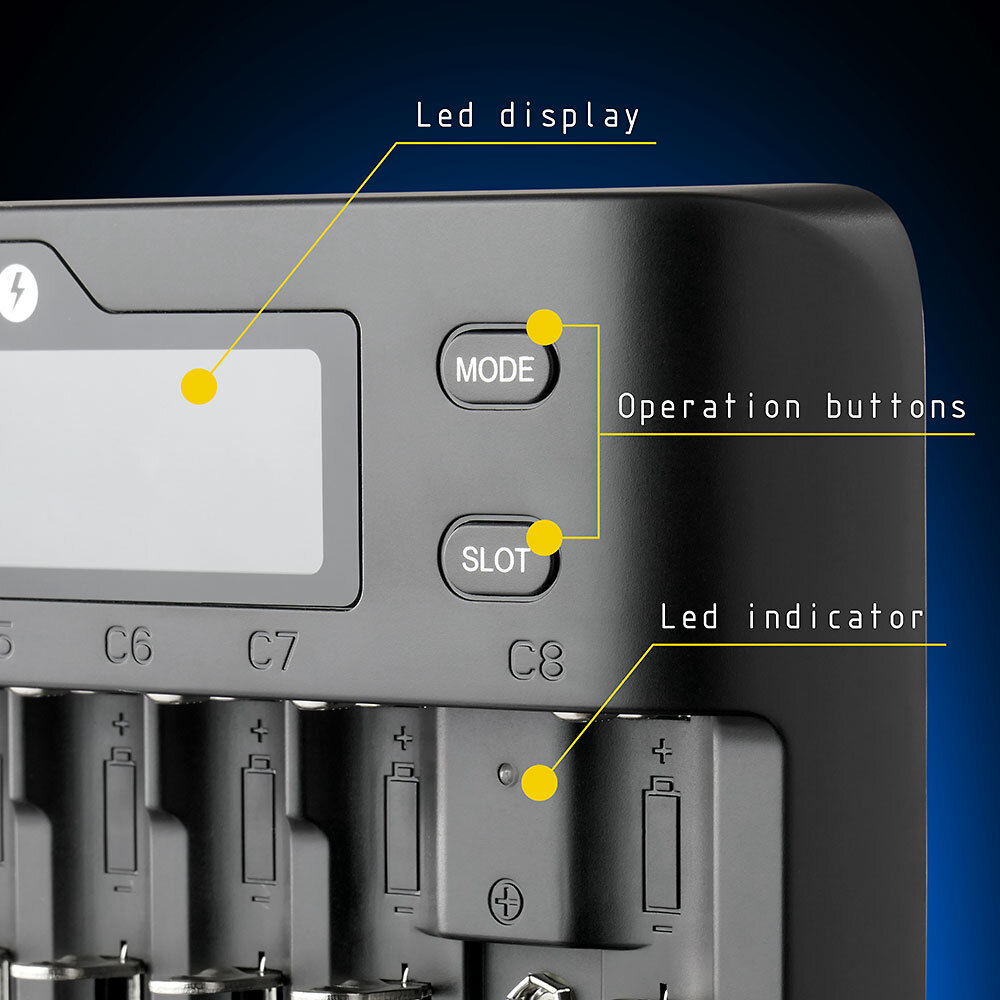

- large readable display with backlight, continuously shows all the most important values,
- complete protections: against overcharging, against reverse polarity of cells, detection of damaged cells.
Li-ion/Li-HV and LiFePO4 batteries are charged very accurately using the CC/CV method with a termination level of about 100mA. This guarantees complete safety and full charging of each battery, even if it is heavily degraded or has low capacity.
Ni-MH and 9V batteries are charged using the CC (constant current) method with very precise dV / PVD detection - charging is completed only after reaching the maximum voltage on the battery (the value of this voltage may be different for each battery).
An advanced microprocessor and a series of built-in protections ensure optimal and safe charging of each battery.
A wide compatibility is not the only advantage of this charger. A large readable display with backlight continuously shows all the most important values:
The charger will support any cylindrical battery with a length of 33-76 mm and a maximum diameter of 30 mm.
In the UC800, we can easily charge popular 18650 batteries both in versions with electronic protection and without. Protected 20700/21700 batteries also pose no problem for it.
The charger has an input voltage of: 12V DC, in the set we receive a 12V DC / 3A power supply, optionally a car adapter can be purchased.
- Li-ion batteries 3.6-3.7V, protected (with PCM/PCB)
- Li-ion batteries 3.6-3.7V, unprotected
- Li-ion batteries 3.8-3.85V, protected (with PCM/PCB)
- Li-ion batteries 3.8-3.85V, unprotected
- LiFePO4 Batteries
- Ni-MH batteries
- 6F22/9V batteries
- 12 V DC / 3000 mA
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- Charge
- Adjustable - 200mA - 2000mA per channel/slot for Li-ion / Li-FePO4(2000mA tylko dla kanałów 1 i 8)
- 200mA - 1000mA per channel / slot for Ni-MH
- 60mA - for 9V batteries
- Li-ion 4.2V ±0,05V
- Li-FePO4 3.65V ±0.05V
- Ni-MH ~1.45V-1.55V dV/PVD
- Li-HV 4.35V ±0,05V
- Before reloading
- Before over-discharging cells
- Against overload / short circuit
- Overload
- Thermal - before overheating of batteries
- Before reverse polarity of cells
- UC-800 charger, 12V/3A AC adapter, user manual
