Key Features
- microprocessor-controlled Li-ion cell charging process: CC/CV
- NiMH charging method: 0△V and -△V
- four independent charging channels
- powered by any USB charger (recommended 2A)
- compact size - easy to carry
- protections: short circuit, thermal, reverse polarity
- built-in LED, allowing us to turn the BC4 into a handy flashlight
- power bank function
Xtar is a renowned manufacturer of high-quality Li-ion battery chargers, flashlights, and Li-ion batteries. Xtar products are sold in over 120 countries, including the USA, Germany, Japan, and Russia. Xtar uses the highest quality materials in the production of its chargers - from the casing material to efficient electronics. All Xtar chargers have the CE certification required in European markets.

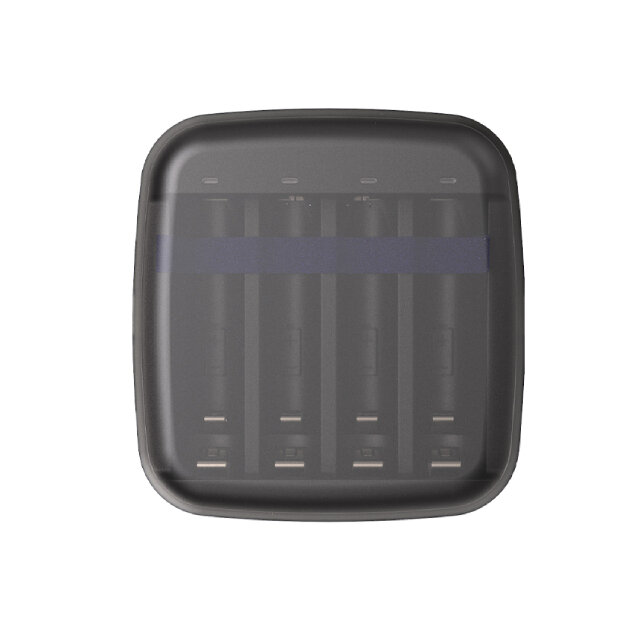

The Xtar BC4 charger features an advanced processor that can distinguish the type of battery installed in it. This allows us to charge any 1.5V Li-ion or Ni-Mh battery in each charger slot. The refined charging algorithm ensures that the battery is always charged to full and in an optimal, safe manner for the specific cell chemistry.
The BC4 is equipped with a white LED, allowing us to use the charger as a portable flashlight when needed. To use this function, batteries must be installed in the charger. Activating the flashlight mode in the BC4 is incredibly simple - just hold the button located on the side of the charger for 2 seconds!
Compact size and the cover of the charging compartment are two quite important advantages of the BC4 charger. By combining these two features, we get a mobile charger with power bank and flashlight functions. Additionally, a strap is included in the package to facilitate its transport.
The Xtar BC4 charger can also serve as a power bank. It has a USB output of 5V 2A, which can emergency charge devices like smartphones, MP players, etc. The capacity of the power bank depends on the cells placed in it. Importantly, the USB output can be used even with alkaline batteries. However, it is recommended to use Ni-MH / Li-ion 1.5V batteries.
NOTE!
In power bank mode (discharging), it is best to use batteries from the same manufacturer / capacity and charge state.
Like every Xtar charger, the BC4 model is protected in every possible way. The most important protections it has are:
- short circuit
- thermal
- against overcharging
- overcurrent
- against reverse polarity
- Ni-MH batteries
- 1.5V Li-ion batteries protected
- 5V DC((500 - 2100 mA))
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- 500mA
- 1.5V
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Charge
- BC4 charger
- USB Type-C Cable
- a bow
4x Xtar R03 / AAA 1.5V Li-ion 750mAh Battery with Protection (BOX)
- nominal voltage: 1.5V
- minimum capacity: 680mAh
- typical capacity: 750mAh
- protected against: discharge, overcharge, overload, short circuit
- number of charge and discharge cycles: over 1200 cycles
- Ni-MH batteries
- 1.5V Li-ion batteries protected
- 5V DC((500 - 2100 mA))
- Processor-controlled CC/CV for Li-ion/Li-FePO4
- Processor-controlled CC with -ΔV/0ΔV/PVD for Ni-MH
- 500mA
- 1.5V
- Before the charger overheats
- Against overload / short circuit
- Before reverse polarity of cells
- Charge
- BC4 charger
- USB Type-C Cable
- a bow
