SSB Batteries
Technology:
- AGM – maintenance-free lead-acid batteries with electrolyte trapped in a glass mat separator.
- Type: sealed lead-acid batteries with safety valves.
Application:
- Telecommunications
- Energy
- Industry
- Medicine
For emergency power supply in:
- Telephone exchanges
- Base and relay stations
- DC power plants
- Cable TV power supplies
- Emergency lighting
- Alarm systems
- UPS systems with power ratings of 1-800kVA
Characteristics:
- Compact design 12V – monoblock
- Maintenance-free (in terms of electrolyte replenishment)
- High operational safety due to the use of pressure relief valves
- Space-saving installation
- Very high energy density
- Ventilation according to DIN VDE 0510 requirements
- Operating temperature -15°C to +50°C (recommended 20°C)
- Can operate in any position (excluding charging)

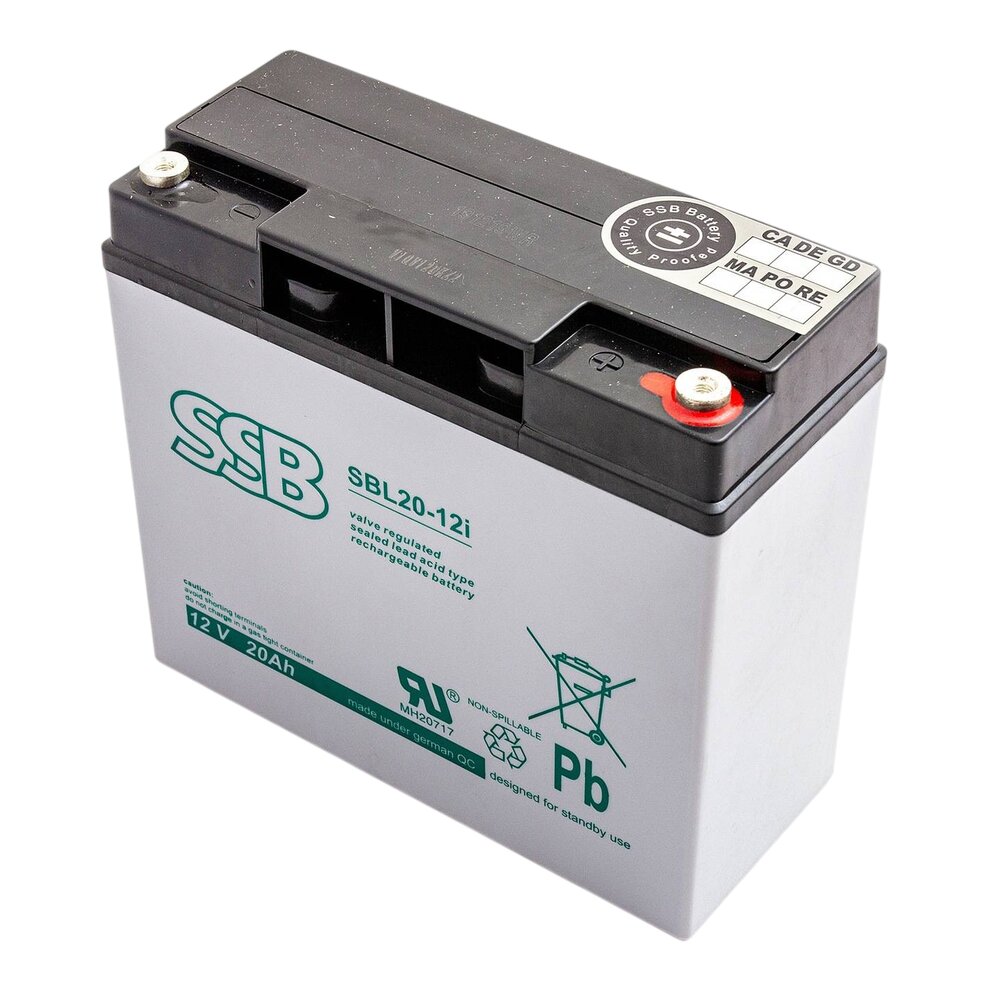

Product features AGM gel battery SSB SBL 20-12i 12V 20Ah M5
Voltage [V]
12.0
Capacity
20Ah
Dimensions (W x D x H) [mm]
77 x 181 x 167
Scales [g]
- 6,0
Connectors
M5
Internal resistance [mOhm]
15
DC charging
Praca buforowa 13,5~ 13,8VDC; Praca cykliczna 14,6 ~ 14,8 VDC
Charging [A]
5,900
Product features AGM gel battery SSB SBL 20-12i 12V 20Ah M5
Voltage [V]
12.0
Capacity
20Ah
Dimensions (W x D x H) [mm]
77 x 181 x 167
Scales [g]
- 6,0
Connectors
M5
Internal resistance [mOhm]
15
DC charging
Praca buforowa 13,5~ 13,8VDC; Praca cykliczna 14,6 ~ 14,8 VDC
Charging [A]
5,900
