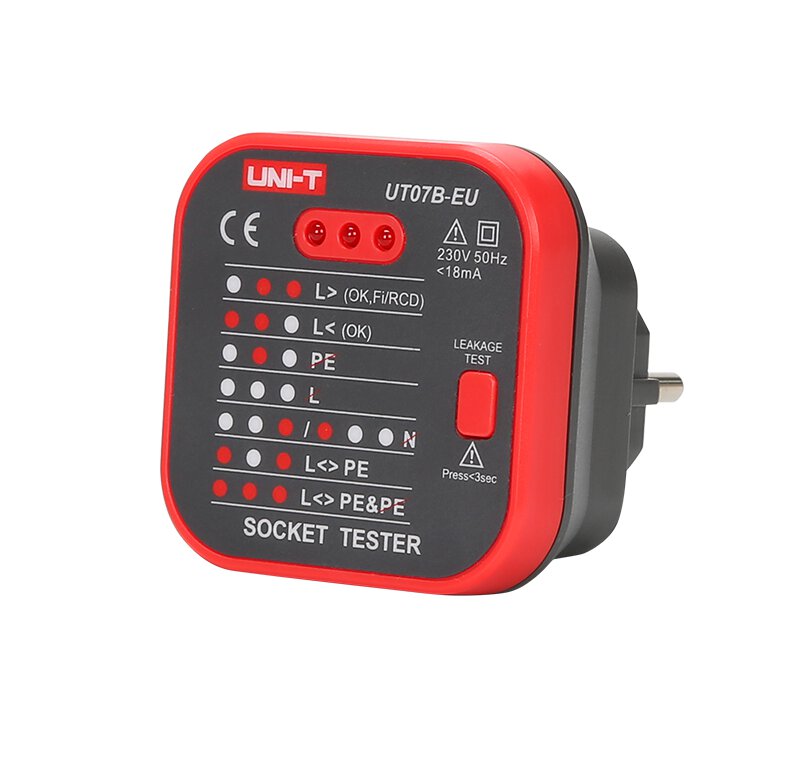

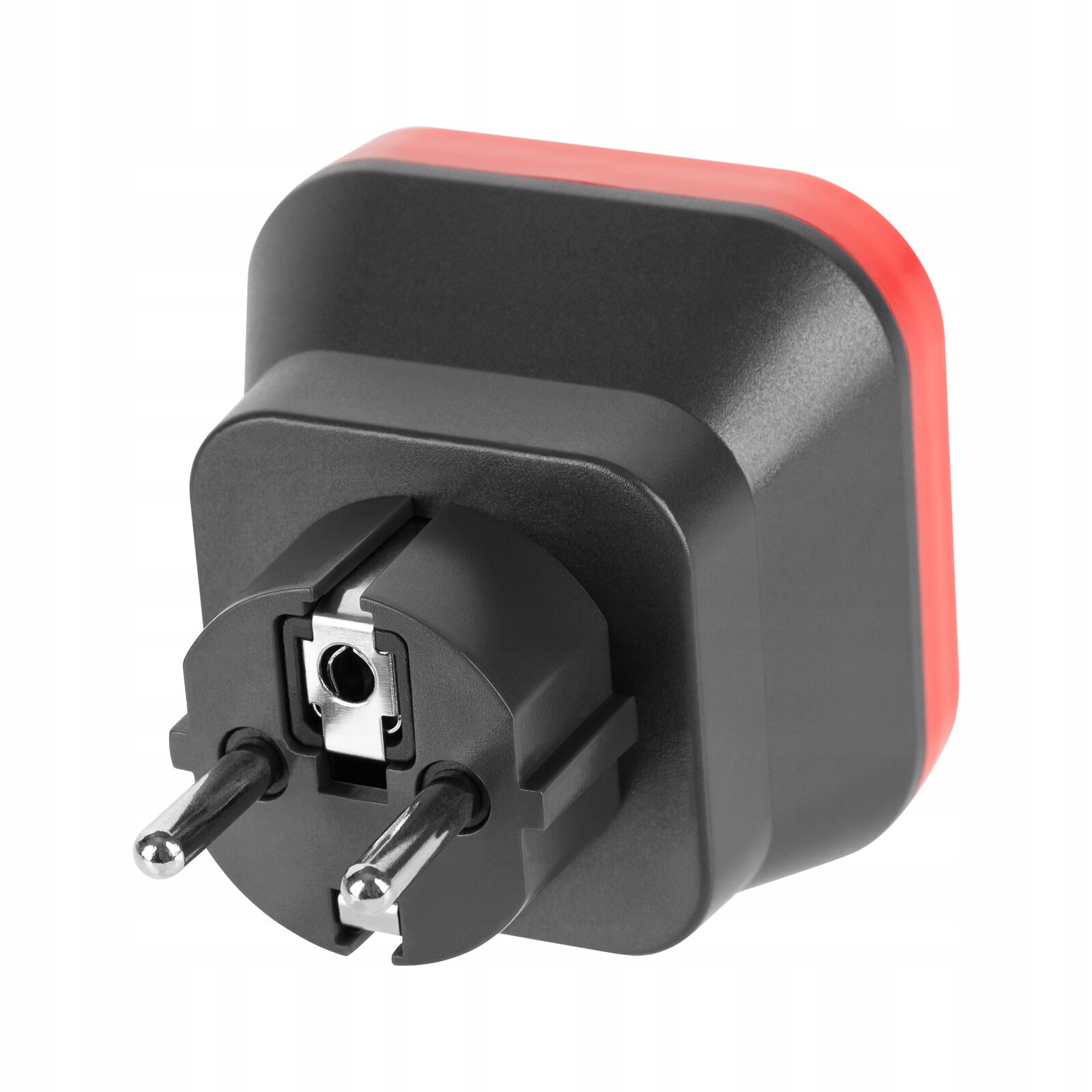

UT07B-EU Network Socket Tester by UNI-T is an intelligent device that allows for quick and safe verification of the wiring correctness of an electrical socket. Thanks to the use of LED diodes and the function of testing the residual current device (RCD), the device can detect faults in the electrical installation, such as the absence of a protective conductor (PE), swapping of the phase (L) and neutral (N) wires, or lack of voltage.

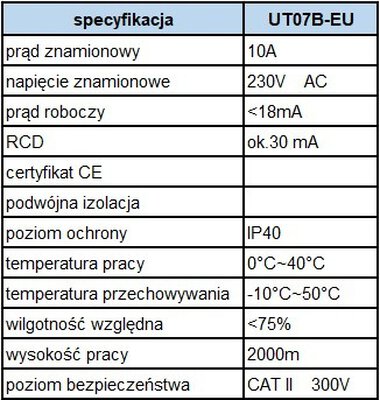

Product Features:
- Rated Voltage: 230 V AC +/-10%
- Current Frequency: 50 Hz
- Current Consumption: <18 mA
- Functions: Detection of wiring faults (L, N, PE),
RCD testing at leakage current ~30 mA, LED indicator signaling 8 different connection states - Degree of Protection: IP40
- Operating Temperature: 0 C ~ 40 C
- Dimensions: 65 × 65 × 61 mm
- Weight: 80 g
- Standards: CE, CAT II 300V
Application:
The device is ideal for electricians, installers, and individual users for quickly checking the correctness of network socket connections in homes, offices, or workshops.
Product features Network Socket Tester UT07B UNI-T
The set includes
- Tester gniazdek UT07B-EU
Dimensions [mm]
- 65 × 65 × 61 mm
Scales [g]
- 80
Warranty [miesiące]
24
Product features Network Socket Tester UT07B UNI-T
The set includes
- Tester gniazdek UT07B-EU
Dimensions [mm]
- 65 × 65 × 61 mm
Scales [g]
- 80
Warranty [miesiące]
24
