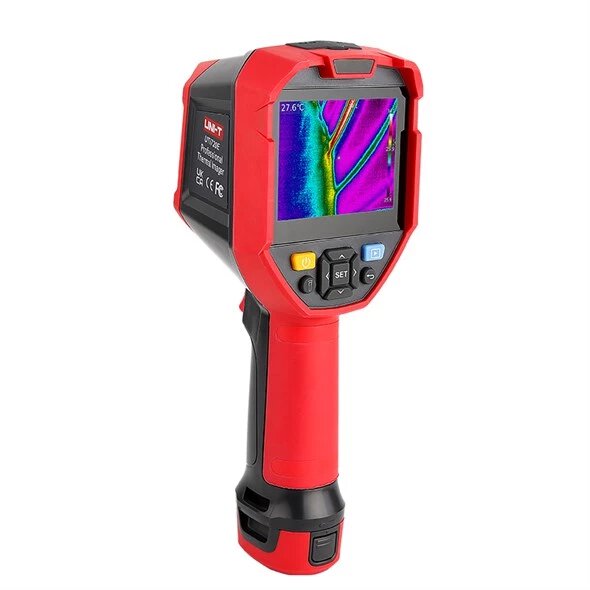

The UNI-T UTi720E is an advanced thermal imaging camera designed for professionals who expect high precision measurements, clear images and reliability in their daily work. This model belongs to the Enhanced series and combines a high resolution IR detector, a wide temperature range and extensive analytical functions for the rapid detection of faults and thermal anomalies.
The device is ideal for energy, industry, construction, technical service, electrical installations, and diagnostics of HVAC and photovoltaic systems.
The UTi720E camera is used , m.in, in:

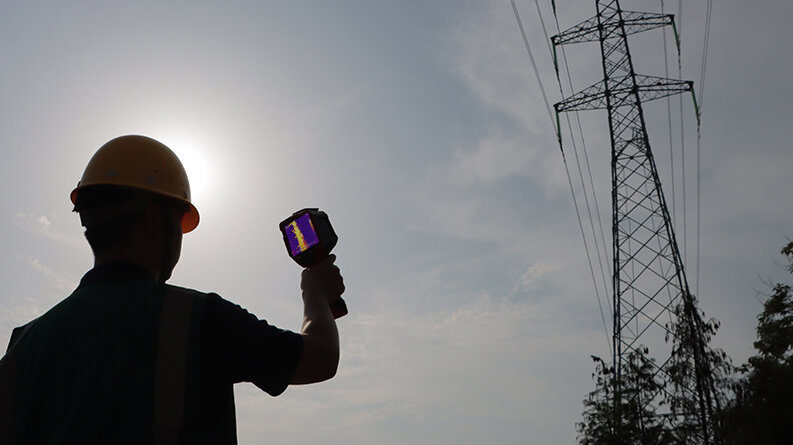

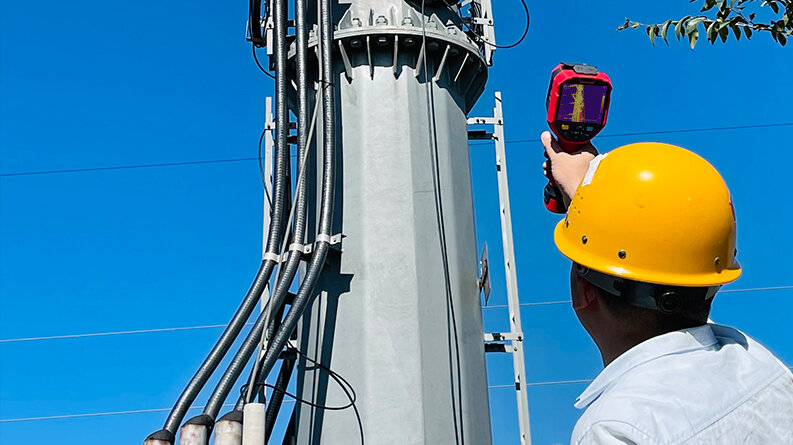

- diagnostics of electrical installations and switchgear,
- detection of overheating wires, contacts and fuses,

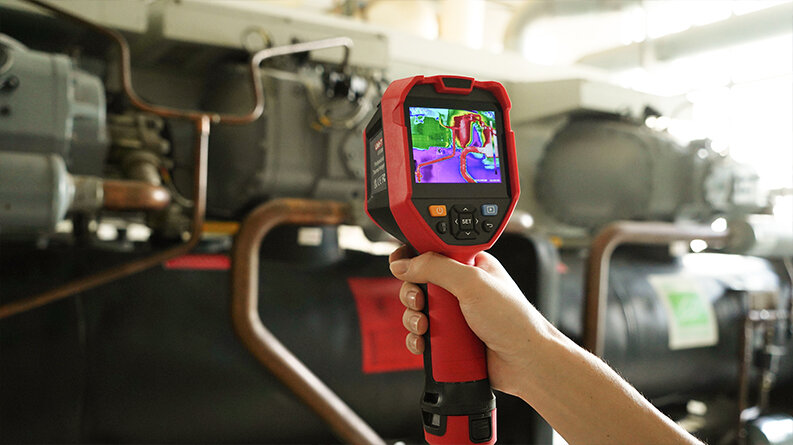

- inspection of industrial machinery and equipment,
- analysis of thermal insulation of buildings and location of thermal bridges,

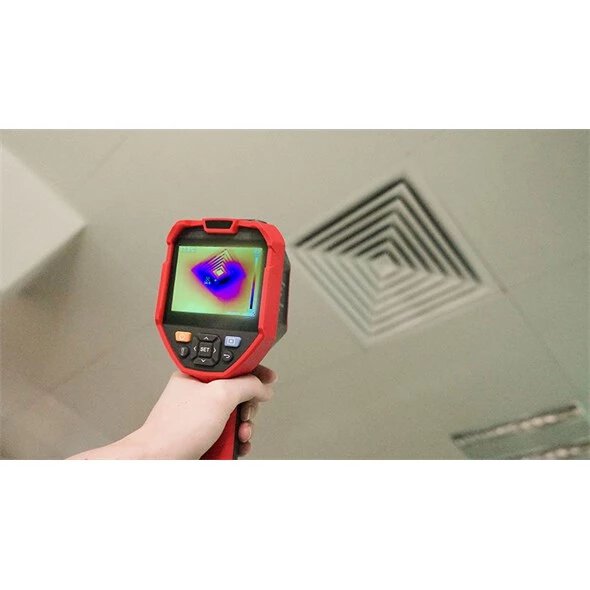

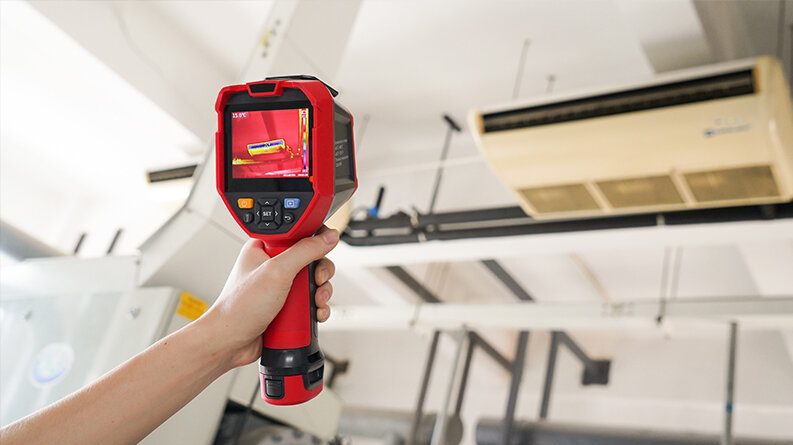

- inspection of HVAC installations (heating, ventilation, air conditioning),

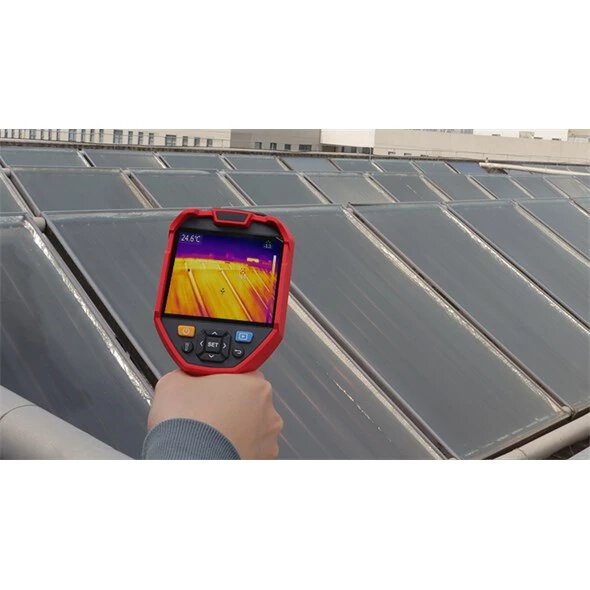

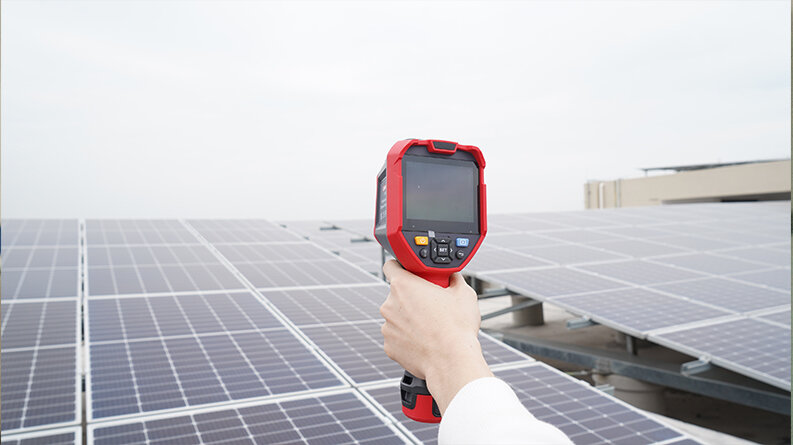

- service of photovoltaic panels,
- maintenance work and energy audits.
High thermal image quality
At the heart of the device is an infrared detector with a resolution of 256 × 192 pixels, which provides a detailed and clear thermal image. Thanks to its high thermal sensitivity (NETD ≤ 50 mK), the camera can detect even small temperature differences, which is crucial for precise diagnostics.
The large 3.5-inch IPS display with a resolution of 640 × 480 guarantees excellent image readability in a variety of lighting conditions, both indoors and outdoors.
Advanced visualization modes
The UNI-T UTi720E offers multiple image display modes, allowing you to tailor the camera to the specific task:
- thermal mode - classic infrared image,
- visual mode - image in visible light,
- Fusion mode - a combination of thermal and visual images,
- PIP (Picture in Picture) mode - thermal image against the background of the real image.
In addition, the user has several color palettes at his disposal, which make it easier to interpret the measurement results depending on the type of inspection.
Extensive analytics tools
The UTi720E camera allows you to analyze temperatures in detail directly on the screen:
- temperature measurement at 5 points,
- analysis along the measuring line,
- analysis in areas (rectangles and circles),
- automatic indication of maximum and minimum temperature.
Thanks to the adjustable emissivity and correction of ambient parameters, the measurements are more accurate and better suited to the tested material.
Wide temperature range and alarms
The camera can measure temperatures from -20 °C to +550 °C, allowing it to be used in both low-temperature and high-temperature environments.
A built-in temperature alarm system informs the user when set thresholds are exceeded, which increases safety and speeds up the detection of potential failures.
Functionality and ergonomics
- Digital zoom 2× and 4× - zooming in on details without having to get close to the subject,
- Built-in LED lamp - helpful when working in dark rooms,
- Wi-Fi connectivity - fast transfer of photos and data to mobile devices,
- PC software - image analysis, report creation and data archiving,
- Save photos in JPEG format to a microSD card.
Rugged design
The robust IP54-rated housing protects the camera from dust and splashes, making it suitable for harsh industrial environments. The ergonomic handle ensures a secure grip and comfort of use even during long-term inspections.
Power and mobility
The UTi720E is equipped with a replaceable 5200 mAh Li-ion battery, which provides up to approximately 3.5 hours of continuous operation. Charging is done via the USB-C port, which makes it easy to use popular power sources.
Key Specifications
- IR Resolution: 256 × 192 px
- Temperature range: -20 °C ... +550 °C
- Thermal Sensitivity: ≤ 50mK
- Display: 3.5" IPS (640 × 480)
- Zoom: 2×/4× (digital)
- Connectivity: Wi-Fi
- Degree of protection: IP54
- Power supply: 5200mAh Li-ion battery
- Weight: approx. 650 g

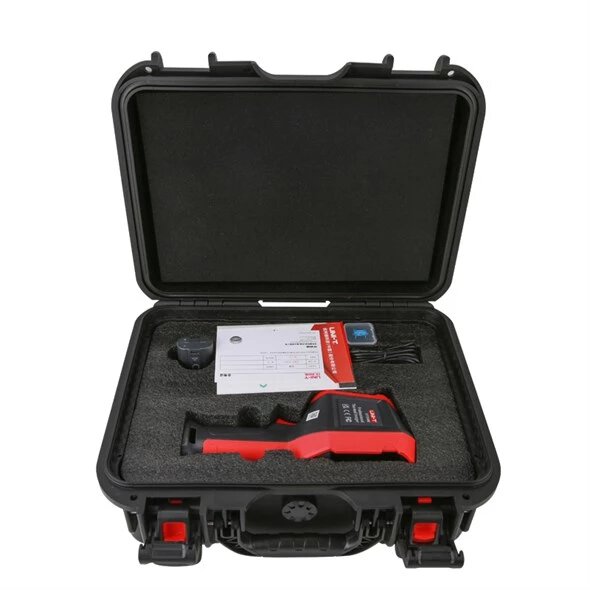

- kamera termowizyjna UNI-T UTi720E
- akumulator Li-ion
- USB-C cable
- karta microSD
- akumulator Li-ion
- 260 x 97 x 99 mm
- 630
- kamera termowizyjna UNI-T UTi720E
- akumulator Li-ion
- USB-C cable
- karta microSD
- akumulator Li-ion
- 260 x 97 x 99 mm
- 630
