Uni-T UT681HDMI is a professional tester of HDMI and Mini-HDMI cables, designed for quick diagnostics of signal cables in audio/video installations, monitoring, AV or computer systems. Thanks to its compact design, simplicity of operation and two modes of operation, it allows you to immediately locate damaged signal lines, short circuits or incorrect connections, which significantly facilitates service and installation.
Key features
- Supports HDMI cables (Type A-A), Mini-HDMI cables (Type C-C), and adapters A-C.
- Detects:
- Circuit breaks
- Short circuit
- crossover of wires,
- incorrect arrangement of signal lines,
- Two operating modes:
- Fast Scan – fast sequential testing,
- Full Display – full illumination of all functional lines.

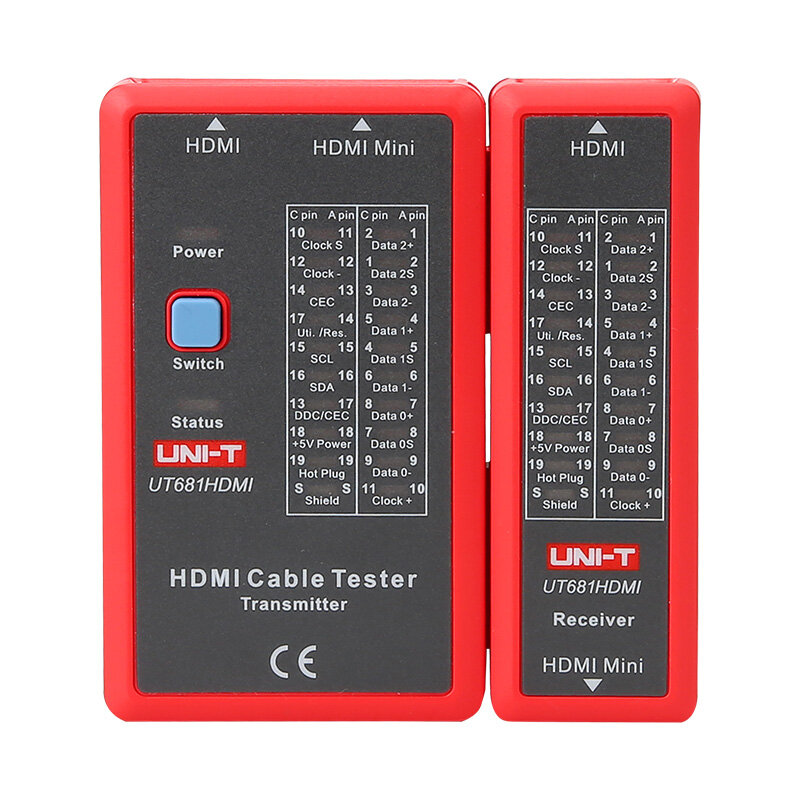

- LED indicator for each of the 19 signal lines + scan status LED.

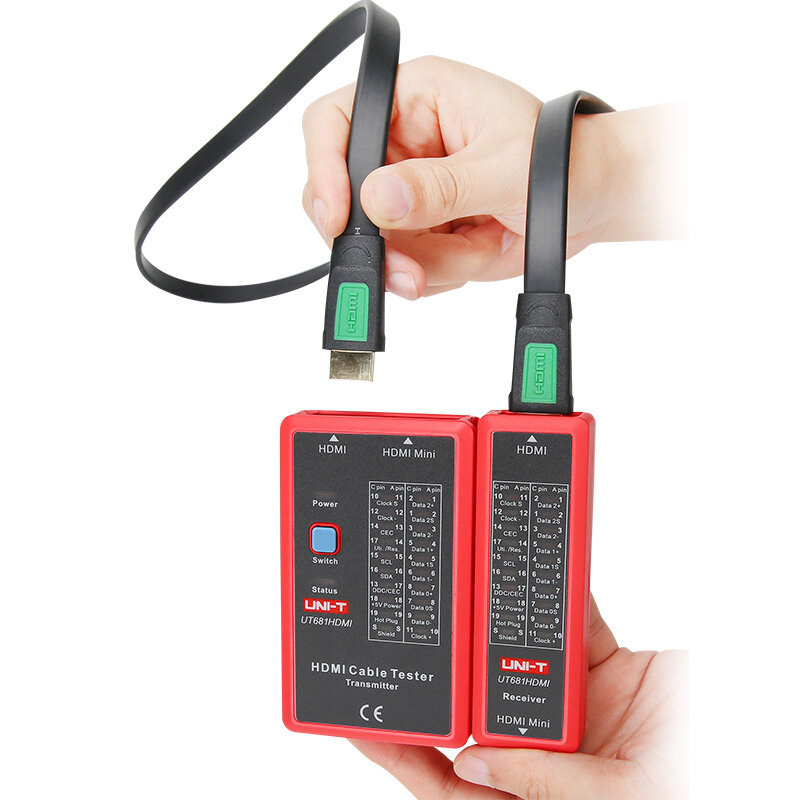

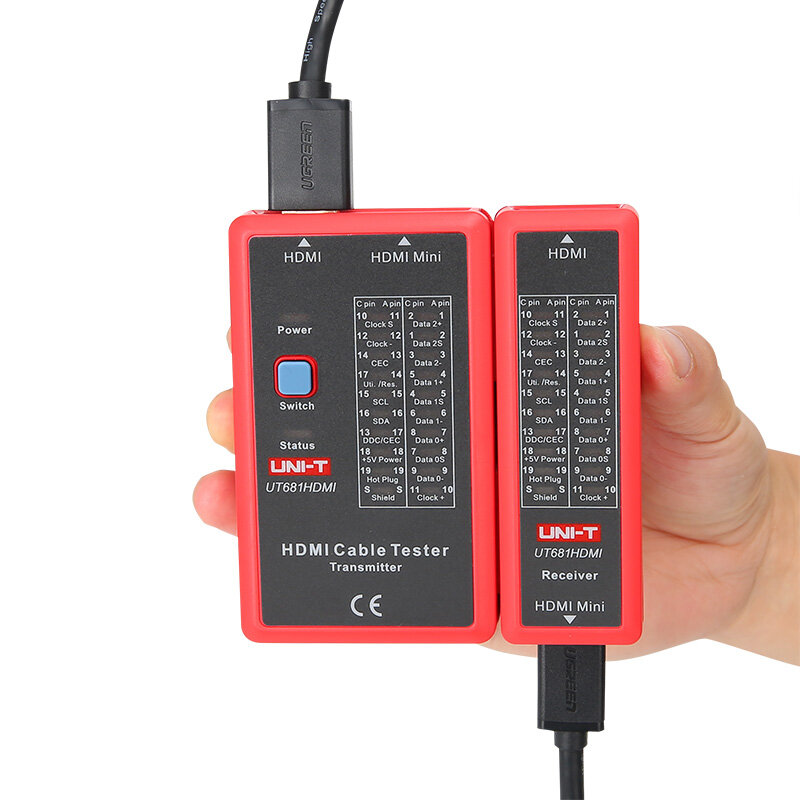

- A set consisting of a transmitter and a receiver – the possibility of testing cables in installations.
- Intuitive one-button operation.
Technical Parameters
- Power supply: 9 V battery (6F22) – included.
- Power saving function: automatic shutdown after 10 minutes of inactivity.
- Low battery indicator: Indication below 7.2V
- Dimensions:
- transmitter – 102 × 62 × 28 mm,
- receiver – 102 × 37 × 28 mm.
- Scales:
- transmitter – 87 g,
- receiver – 51 g.
- Working conditions:
- temperature: 0–40 °C, humidity: 20–80% RH,
- storage: –10–50 °C, humidity: 10–90% RH,
- working altitude: up to 2000 m above sea level
- Certificates: CE, comply with EN61326-1:2013, EN61326-2-2:2013 standards.
Use
- HDMI installations in homes and offices,
- Home theater systems and professional AV sound systems,
- Video surveillance installations,
- Electronics and computer equipment service,
- Quick verification of cables during installation and maintenance.
Product features UT681HDMI Uni-T HDMI Cable Tester
The set includes
- Nadajnik UT681HDMI
- Odbiornik UT681HDMI
- Bateria 9 V
Power
- 1x 9V
Dimensions [mm]
- Nadajnik 102 × 62 × 28 mm
- Odbiornik 102 × 37 × 28 mm
Scales [g]
- 87(Nadajnik)
- 51(Odbiornik)
Warranty [miesiące]
24
Product features UT681HDMI Uni-T HDMI Cable Tester
The set includes
- Nadajnik UT681HDMI
- Odbiornik UT681HDMI
- Bateria 9 V
Power
- 1x 9V
Dimensions [mm]
- Nadajnik 102 × 62 × 28 mm
- Odbiornik 102 × 37 × 28 mm
Scales [g]
- 87(Nadajnik)
- 51(Odbiornik)
Warranty [miesiące]
24
