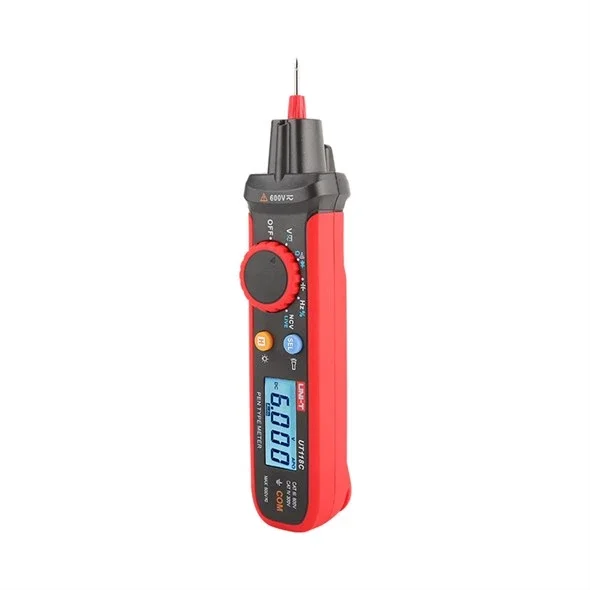

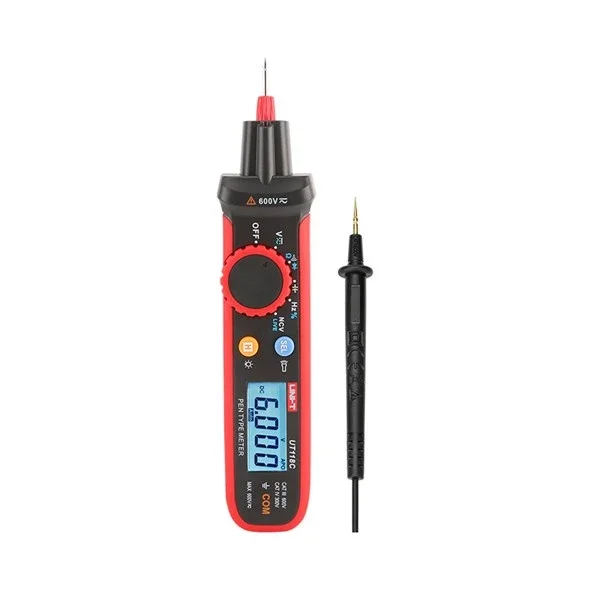

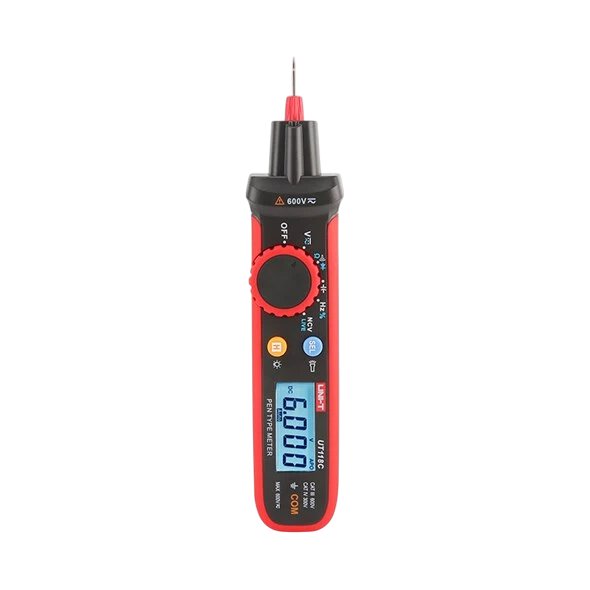

UNI-T UT118C – Compact Ballpoint Pen Multimeter with Auto Range
The UNI-T UT118C is an ultra-slim, automated digital multimeter designed for portability and convenience. With its pen-shaped design and automatic scoping, this model is ideal for technicians, electronics and DIYers who need quick access to basic measurements in hard-to-reach places.
Pen format – maximum mobility
UT118C is a multimeter that can be carried in your pocket like a pen. Its slim, lightweight design allows for comfortable one-handed operation, without the need to unwind test cables or hold a heavy device. It is ideal for field diagnostics, service work and testing in confined spaces.
Automatic measurements – no range setting required
Thanks to the Auto Range function, the UT118C independently selects the appropriate measuring range, which eliminates the risk of errors and speeds up the work. The user does not need to know the exact values of the measured signals – just place the probe and the device will perform the measurement on its own.
UT118C Measurement Features:
- DC Voltage: Up to 600V
- Resistance: up to 40 MΩ
- Continuity test with beep
- Diode Test
- Data Hold function – freeze the result on the screen
Automatic shut-off – energy saving
Easy-to-read display and intuitive operation
The UT118C is equipped with an easy-to-read 3000 count LCD display, which ensures a clear image even in difficult lighting conditions. Operation comes down to a single button, which makes this device extremely intuitive and quick to use – ideal for beginners, but also appreciated by professionals.
Technical data (detailed):
DC voltage measurement range: up to 600 V, with automatic range selection
Resistance measurement range: up to 40 MΩ
Diode test: YES
Continuity test: YES, with beep
Data Hold Function: YES – allows you to stop reading on the screen
Display: LCD 3000 count, easy to read and contrast
Auto Range Function: YES – automatic range selection for each mode
Power supply: 1 × AAA battery (1.5 V)
Auto shut-off function: YES – after a few minutes of inactivity
Dimensions: 180 × 25 × 23 mm
Weight: About 65g (including battery)
Housing: rugged, ergonomic, pen size
Safety category: CAT II 600 V
- Miernik UT118C
- baterie 1 x 1,5V R03
- 1x AAA
- 180 × 25 × 23 mm
- 65
- Miernik UT118C
- baterie 1 x 1,5V R03
- 1x AAA
- 180 × 25 × 23 mm
- 65
