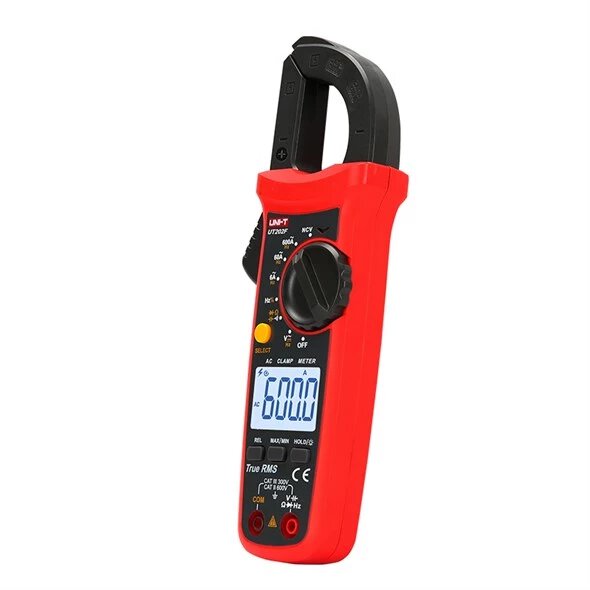

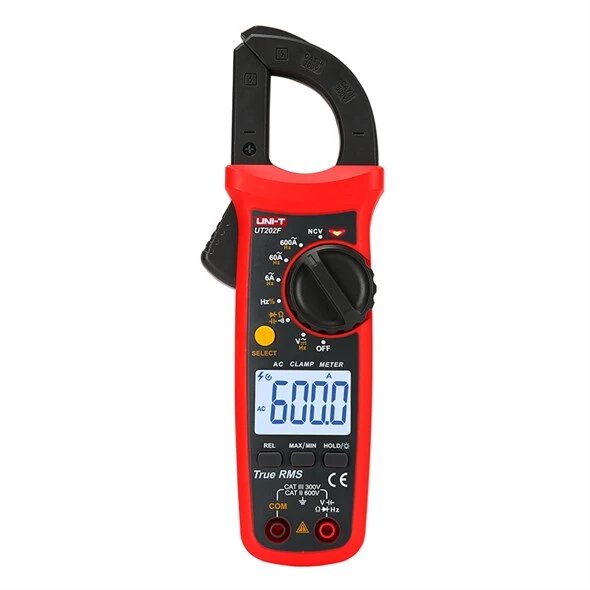

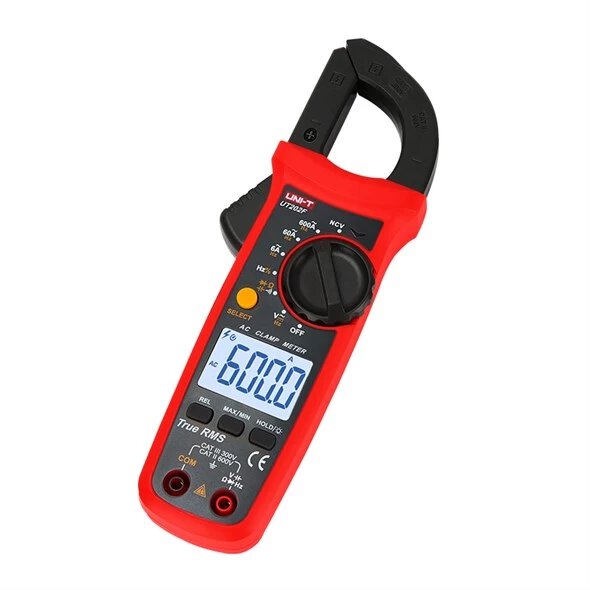

The Uni-T UT202F is an advanced True RMS digital clamp multimeter that is perfect for both professional service and DIY workshops. With non-contact voltage measurement and a wide measurement range, it provides flexibility and convenience of use.
The device enables accurate measurement of alternating current (AC) up to 600 A in the frequency range from 50 to 100 Hz. Voltage measurement, both direct ( DC) and alternating ( AC), is possible up to the range of 600 V with high precision – DC with accuracy of ±(0.5 % + 2 digits), AC ±(0.8 % + 5 digits)
The multimeter also supports a wide range of resistance measurements (up to 60 MΩ), capacitance (up to 60 mF), frequency (from 10 Hz to 10 MHz), as well as diode and continuity tests with an acoustic alarm (<10 Ω). With a four-digit display (6000-count), backlight function, auto range selection (autoranging), HOLD functions, MIN/MAX/REL (minimum, maximum, relative results) and automatic shut-off, using the UT202F becomes extremely convenient
The device is also designed with a safety index: CAT II 600 V and CAT III 300 V in accordance with EN 61010, which guarantees users protection in typical electrical applications. The whole thing is packed in a compact case with dimensions of 215 × 63 × 36 mm, and the weight is about 248 g including batteries. It is powered by two AAA (R03) 1.5 V batteries, which ensure trouble-free operation
- Multimetr UT202F
- Przewody pomiarowe
- Baterie
- Etui
- 2x AAA
- 215 x 63 x 36 mm
- 248(z bateriami)
- Multimetr UT202F
- Przewody pomiarowe
- Baterie
- Etui
- 2x AAA
- 215 x 63 x 36 mm
- 248(z bateriami)
