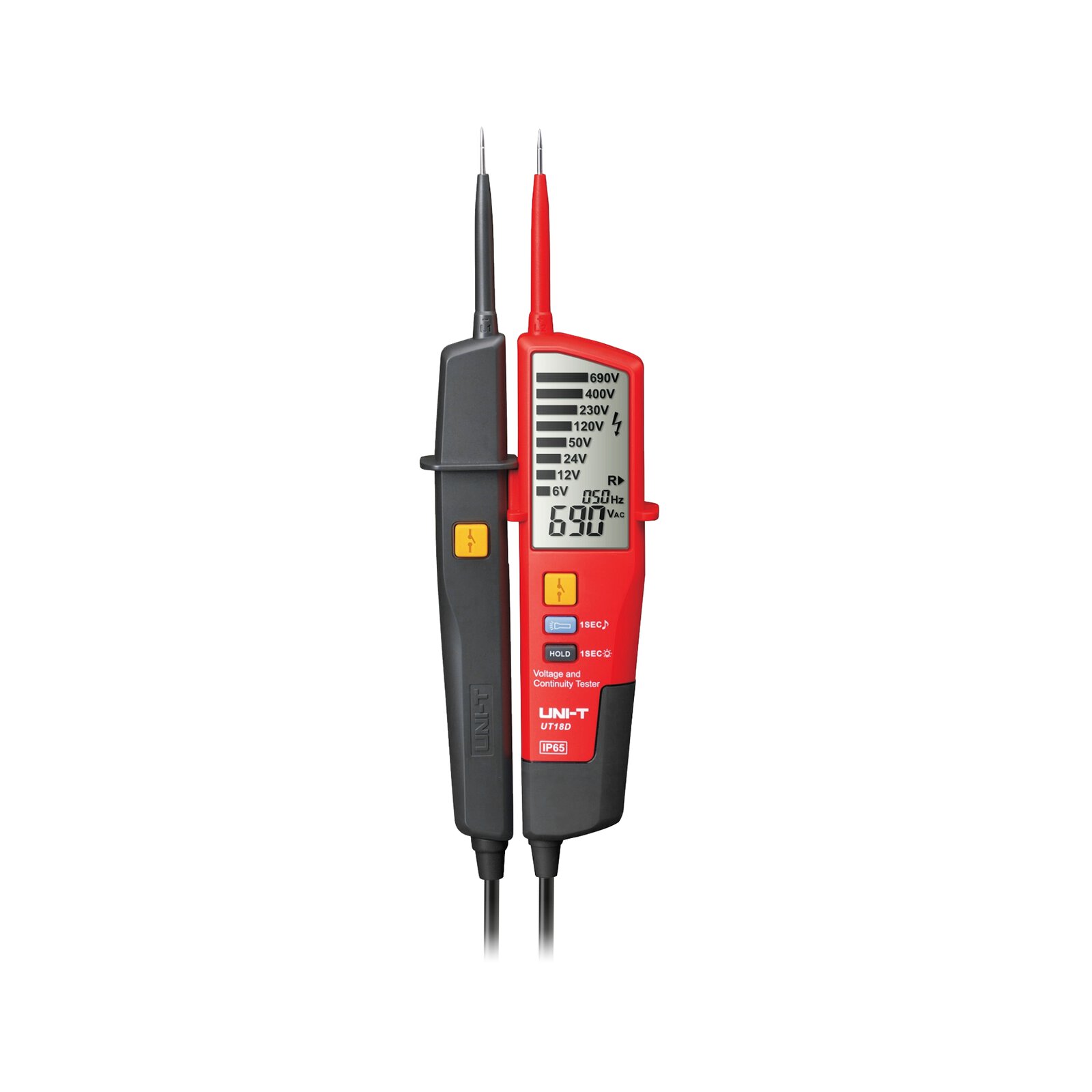

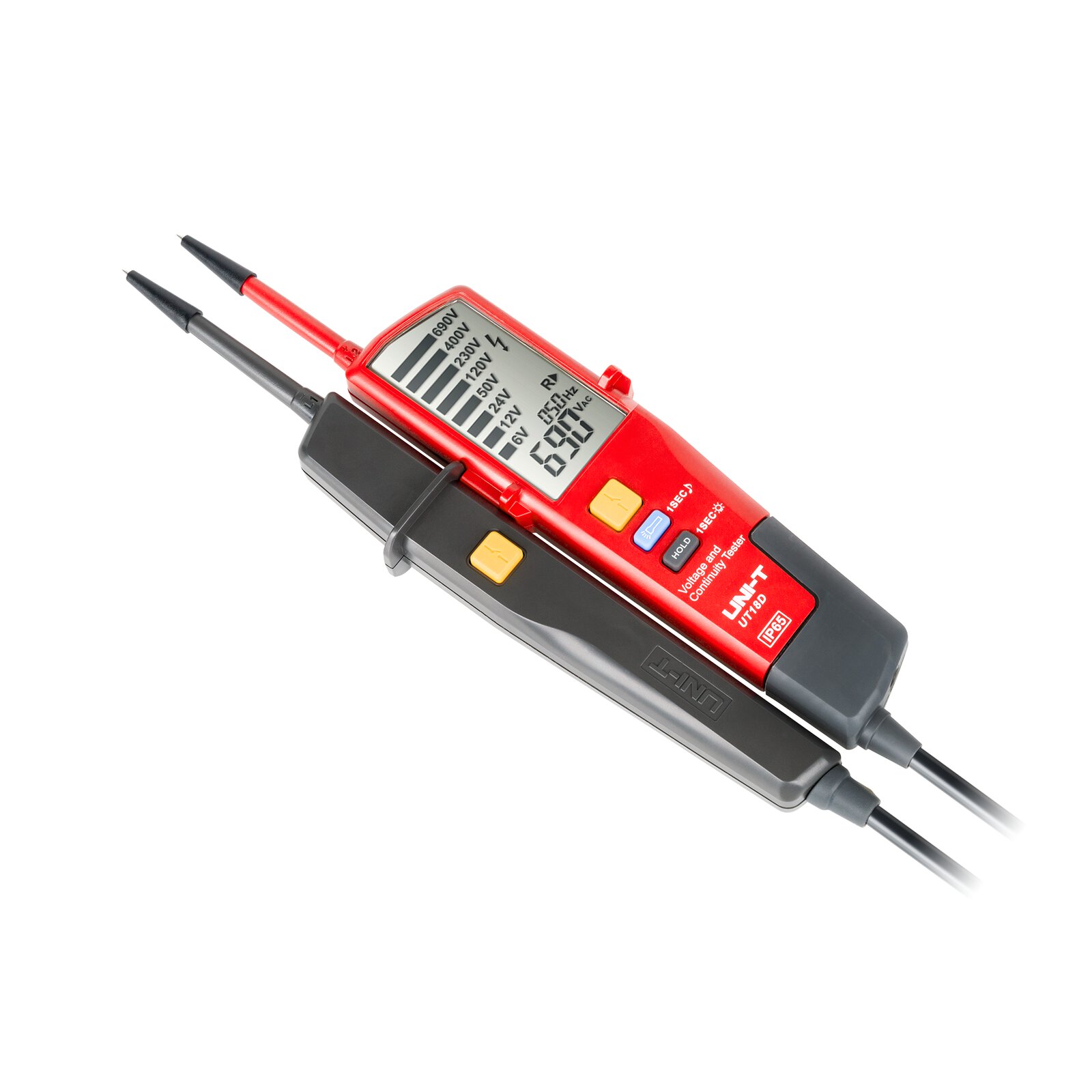

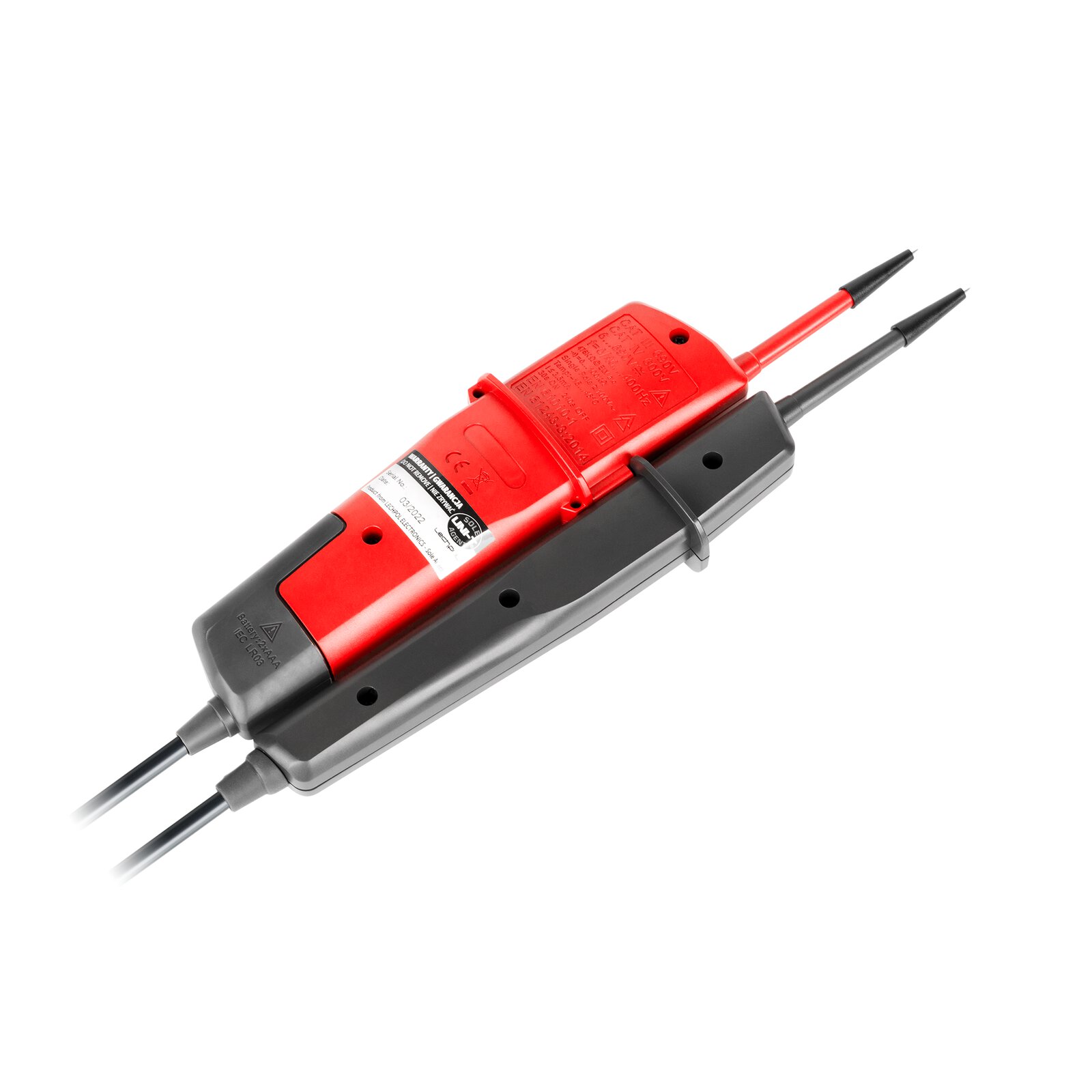

Voltage and phase tester
An automatic meter with a large LCD display that allows you to measure AC and DC voltage up to 690V (including three-phase alternating current). The meter also has a buzzer and a flashlight to illuminate the measurement site.
- Checking RCDs (differentials)
- Detect AC, DC voltage up to 690V
- L1, L2, L3 phase offset/sequence test
- Large LCD display
- Automatic range switching
- Continuity test
- Over-range indicator
- IP65 protection class
- Polarity detection +/- (battery, battery)

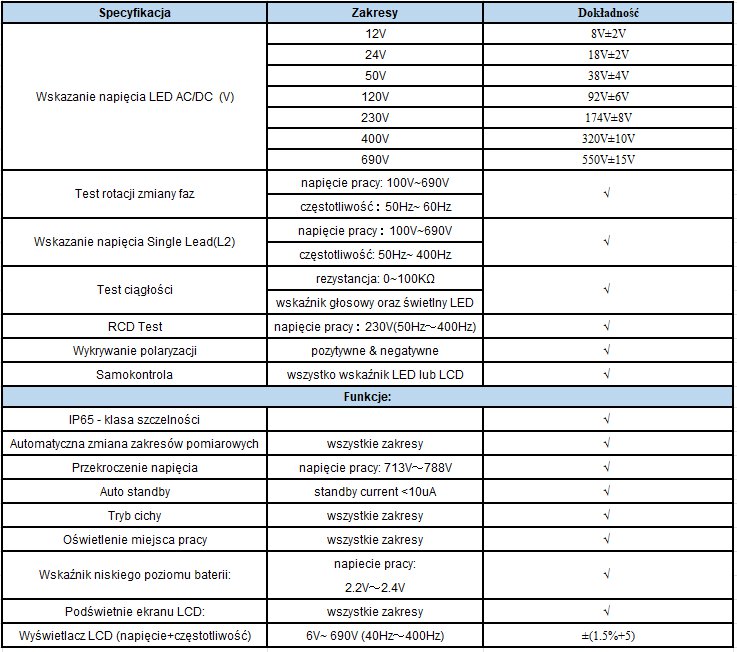

Specifications:
- AC/DC voltage range: 12 V to 690 V
- Ranges: 12V/24V/50V/120V/230V/400V/690V
- Accuracy: +/-(1.5%+5)
- Frequency Range: 40Hz-400Hz
- Automatic change of measuring ranges: Yes
- Buzzer Switchable: Yes
- Automatic polarization detection: Yes
- Measurement Time: 30 s
- Measurement interval time: 240 s
- Surge protection: 750 V AC/DC
- Continuity test: resistance: 0-100 kΩ, accuracy – Rn + 50%
- Phase sequence test (three-phase power supply): voltage range – 57 V to 400 V, frequency range – 50 to 60 Hz
- Operating Temperature: -15 C – 45 C
- Humidity: ≤ 85% RH
- Overload category: CAT III 690 V, CAT IV 600 V
- Environmental protection: second level
- Ingress protection: IP65
- Certificates: EN61010-1, EN61243-3:2010
- LCD Display Dimensions: 73.5 x 35.5 mm
ADDITIONAL FEATURES
- automatic change of measurement ranges
- Instrument test before measurement
- freezing the last HOLD indication
- Over voltage indicator
- TEST RCD
- Auto standby mode
- LED FLASHLIGHT
- illumination of the measurement site
- Lcd
Product features UNI-T UT18D Meter
The set includes
- miernik UT18D
- 2x bateria AAA
Power
- 2x AAA
Dimensions [mm]
- 272 x 85 x 31 mm
Scales [g]
- 280
Warranty [miesiące]
24
Product features UNI-T UT18D Meter
The set includes
- miernik UT18D
- 2x bateria AAA
Power
- 2x AAA
Dimensions [mm]
- 272 x 85 x 31 mm
Scales [g]
- 280
Warranty [miesiące]
24
