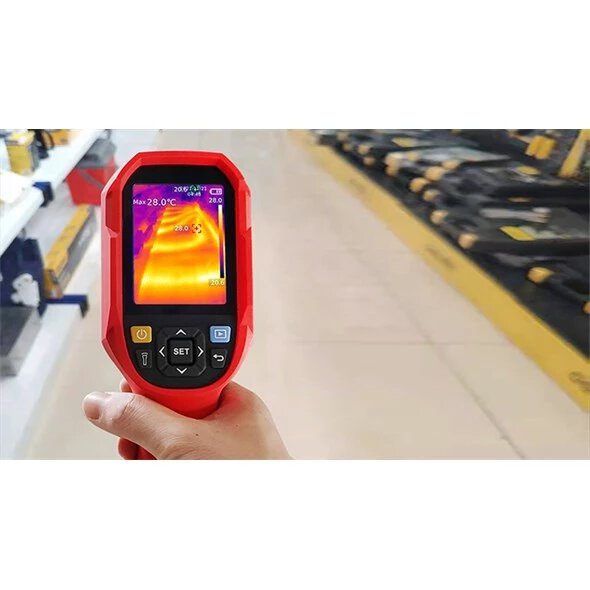

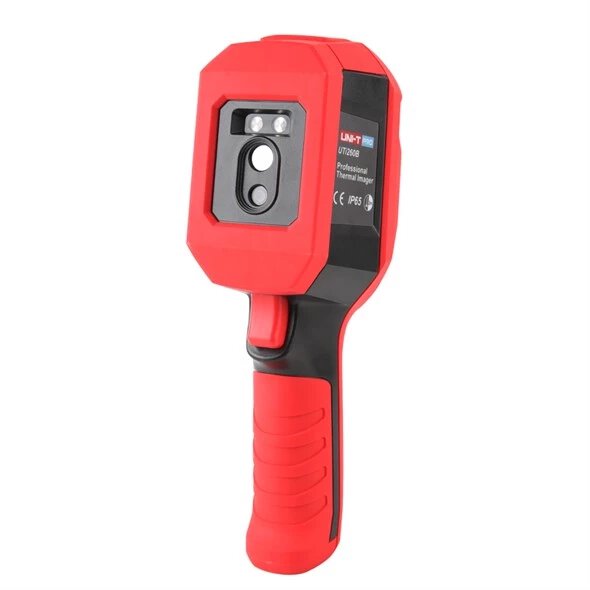

The UNI-T UTi260B is a modern, handheld thermal imaging camera designed for specialists dealing with electrical system diagnostics, maintenance, technical service and energy control of industrial buildings and equipment. This model combines the high resolution of an infrared detector, a wide measuring range and intuitive operation in an ergonomic pistol-type housing.
The UTi260B is perfect for both daily service work and advanced technical inspections.
The UTi260B camera is designed for:

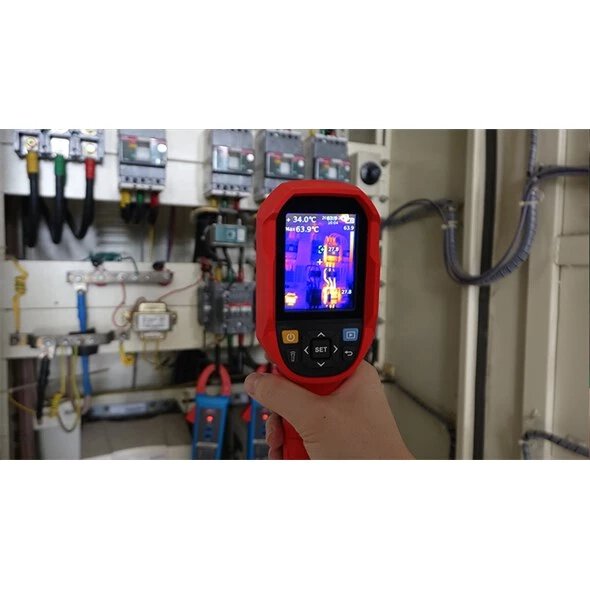

- inspection of electrical installations and switchgear,
- detection of overheating wires, connectors and fuses,

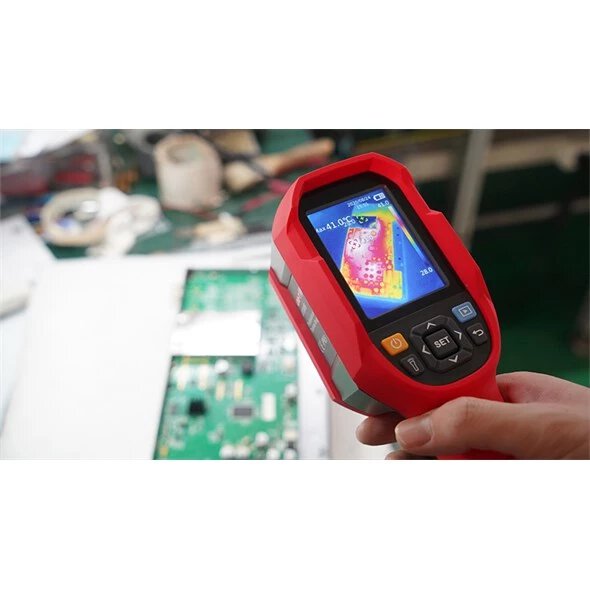

- diagnostics of industrial machinery and equipment,
- control of HVAC systems,
- detection of heat losses and thermal bridges in buildings,
- service of photovoltaic installations,
- maintenance and breakdown prevention.
High thermal image quality
The device is equipped with an infrared detector with a resolution of 256 × 192 pixels, which provides a detailed and legible thermal image. Thanks to its high thermal sensitivity (NETD ≤ 50 mK), the camera can detect even small temperature differences, which significantly increases the effectiveness of diagnostics.

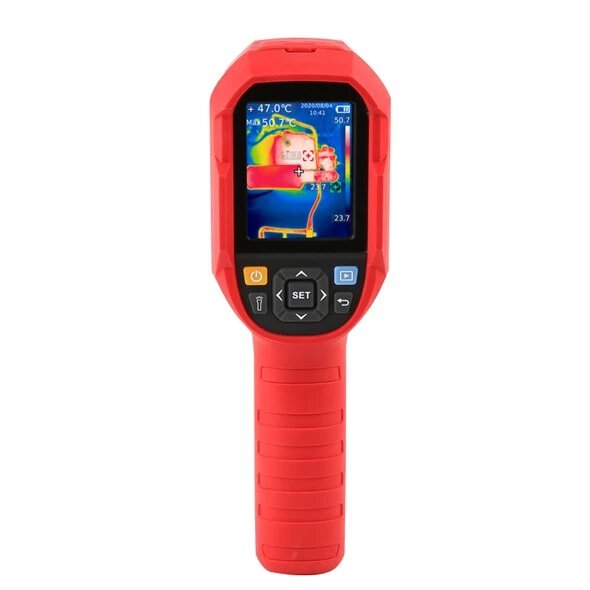

The image is displayed on a large, color LCD screen, which guarantees good visibility of the measurement results in various lighting conditions.
Visualization modes and color palettes
The UNI-T UTi260B offers several image presentation modes to suit the specific task:
- thermal mode,
- visual mode,
- Fusion mode - a combination of real and thermal images,
- PIP (Picture in Picture) mode.
In addition, the user can use different color palettes, which makes it easier to interpret the temperature distribution and quickly detect thermal anomalies.
Advanced Temperature Analysis
The UTi260B camera allows you to accurately analyze temperatures directly on the screen:
- temperature measurement at multiple points,
- indication of the maximum and minimum temperature in the field of view,
- area analysis,
- emission regulation for different types of materials.
Such solutions allow for precise adjustment of the measurement to the tested object and increase the reliability of the results obtained.
Wide measurement range and alarms
The device can measure temperatures in the range from -20 °C to +550 °C, making it a versatile tool for both low-temperature and high-temperature applications.
Built-in temperature alarms inform the user when preset thresholds are exceeded, increasing operational safety and allowing you to react quickly to potential hazards.
Functionality and convenience of use
- Digital zoom - zooming in on the details of the analyzed object,

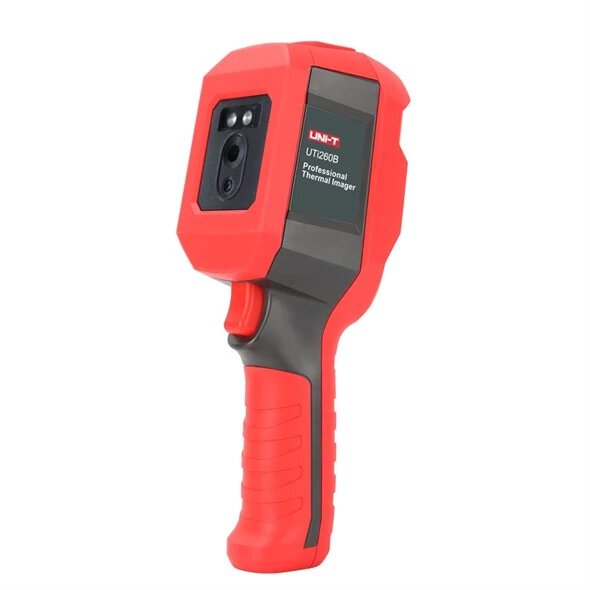

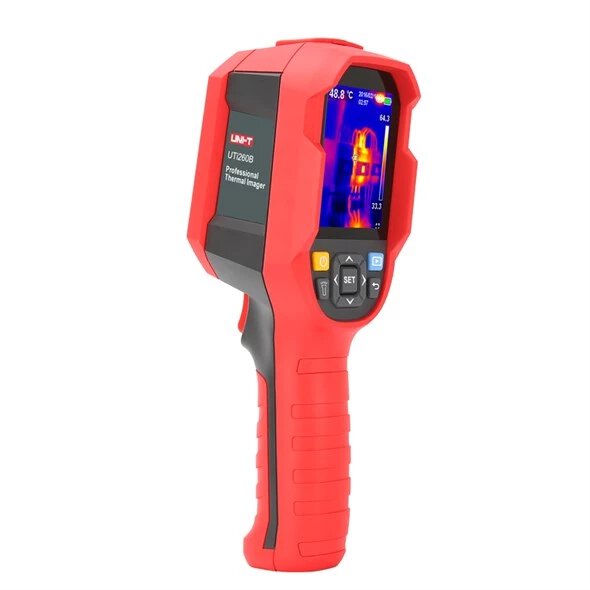

- Ergonomic pistol design - convenient one-handed operation,
- Intuitive menu - quick access to the most important functions,
- Recording of thermal photos - inspection documentation and reporting,
- USB port - easy data transfer to computer.
Robust and durable design

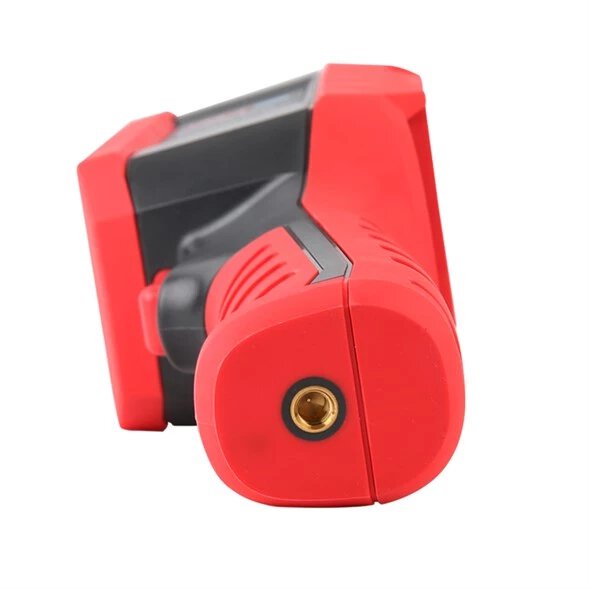

The camera is designed to work in difficult conditions. The rugged housing protects the device from mechanical damage, and the robust workmanship makes the UTi260B suitable for industrial and field applications.
Power and mobility
The UTi260B is equipped with a powerful battery for a long runtime without the need for frequent charging. Thanks to its mobile design, the camera is ideal for field inspections and work in hard-to-reach areas.
Key Specifications
- IR Resolution: 256 × 192 px
- Temperature range: -20 °C ... +550 °C
- Thermal Sensitivity: ≤ 50mK
- Picture Modes: Thermal/Visual/Fusion/PIP
- Color palettes: multicolor
- Zoom: Digital
- Data recording: thermal images
- Design: ergonomic, manual
- kamera termowizyjna UNI-T UTi260B
- accumulator
- USB cable
- akumulator litowo-jonowy 3,6 V 5000 mAh
- 236 x 75,5 x 86 mm
- 910
- kamera termowizyjna UNI-T UTi260B
- accumulator
- USB cable
- akumulator litowo-jonowy 3,6 V 5000 mAh
- 236 x 75,5 x 86 mm
- 910
