Universal Power Supply, Voltage Selector USB-C PD - DC 5V, 9V, 12V, 15V, 20V, 10 Pins, everActive AD-PD65

AD-PD65 – Your Universal Electronics Power Supply

Forget about the tangle of different power supplies and cables. The adapter is a modern, universal tool that will allow you to power laptops, cameras, camcorders, audio equipment and many other devices – all from a single charger or power bank that supports USB Power Delivery.

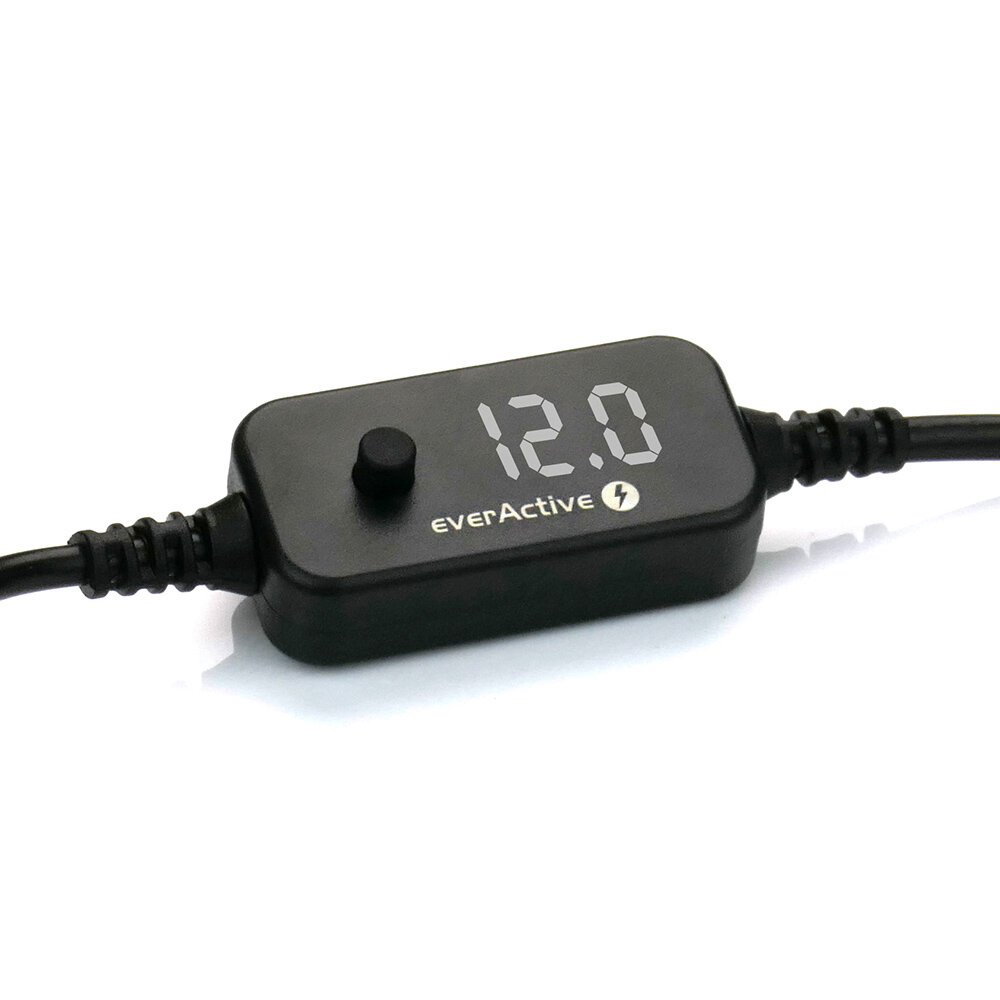

Thanks to the built-in voltage change button and easy-to-read LED display, you can set the right value in seconds – 5V, 9V, 12V, 15V or 20V – and you can be sure that your device gets exactly what it needs. And thanks to the memory function, the last setting will be remembered even after the power is removed.

Why?

• One cable – dozens of applications – with a set of 10 interchangeable DC terminals, you can fit it not only to popular laptops from brands such as Lenovo™, Dell™, HP,™ Asus™, Acer™, Samsung™, Sony™, Toshiba™ or LG™, but also to:
  • CCTV cameras and CCTV surveillance,
  • cash registers and fiscal printers,
  • payment terminals,
  • multimedia projectors,
  • portable sound system and audio amplifiers,
  • LED lighting and advertising panels,
  • portable radio receivers and scanners,
  • service and laboratory equipment,
  • multiple routers and network devices with DC power.
• Thanks to such wide compatibility, the AD-PD65 can in many cases replace a whole set of different chargers and power supplies at home, in business or in the field.
• High power up to 65W – ideal even for notebooks requiring 18-19V (20V mode).
• Safe regulation – you choose the voltage before connecting the device, minimizing the risk of damage.
• Lightweight and portable – fits in a laptop bag or photo backpack.
• Fully compatible with PD chargers and power banks – turn one cable into a universal power supply.

What to pay attention to?

• This is not a voltage converter – the AD-PD65 will not increase the maximum voltage available in your charger/power bank. If the power supply does not support e.g. 12V or 20V, the adapter will not be able to generate them.
• The voltage range depends on the power source – check the specifications of your PD charger to make sure it supports the required voltage.
• Maximum power – up to 65W (20V / 3.25A). Do not exceed this value or the power limit of the power supply itself.

Warnings:

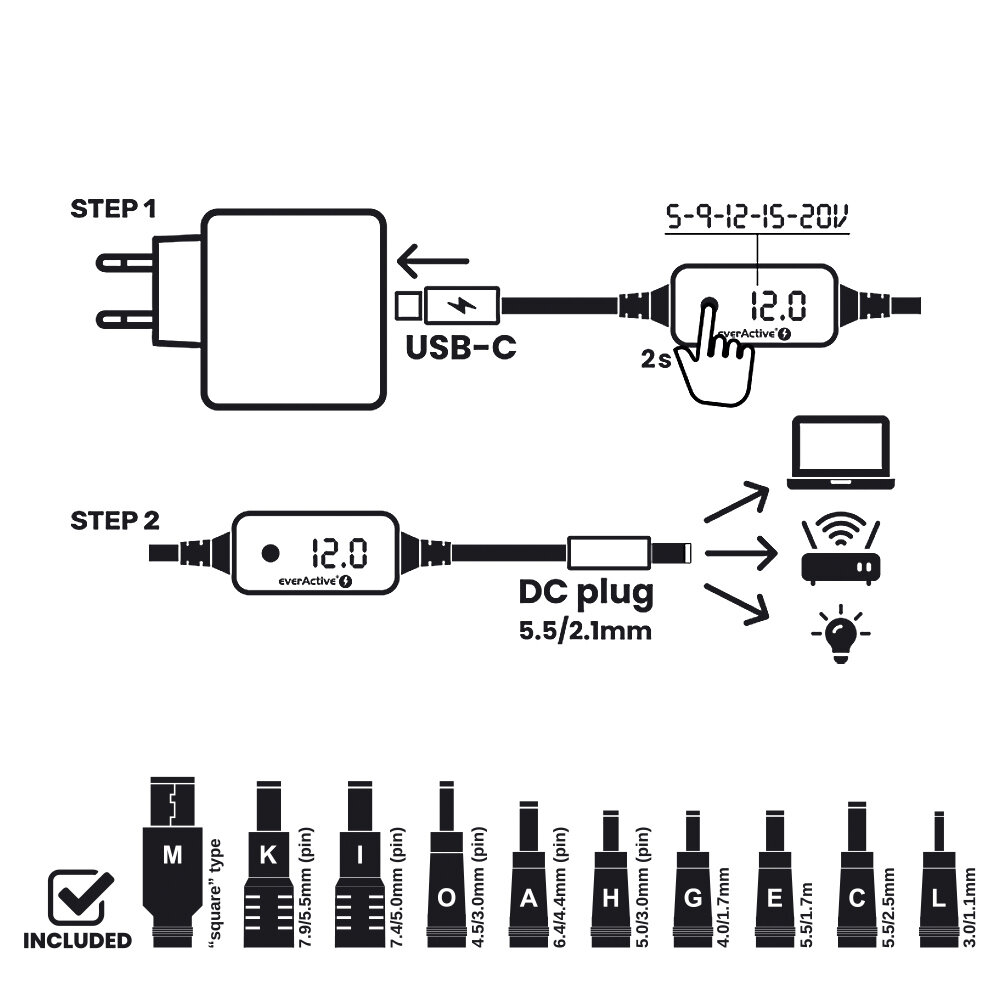

• Do not change the voltage after connecting to the device – always select the correct voltage before plugging the cable into the equipment. A change in voltage "on the fly" can cause permanent damage.
• Do not use unauthorized plugs or self-made adapters – this may lead to a short circuit or failure of the device.
• Always confirm the voltage on the LED display before plugging in – you avoid the risk of overvoltage.
• Unplug the cable when not in use – this protects both the equipment and the power source.

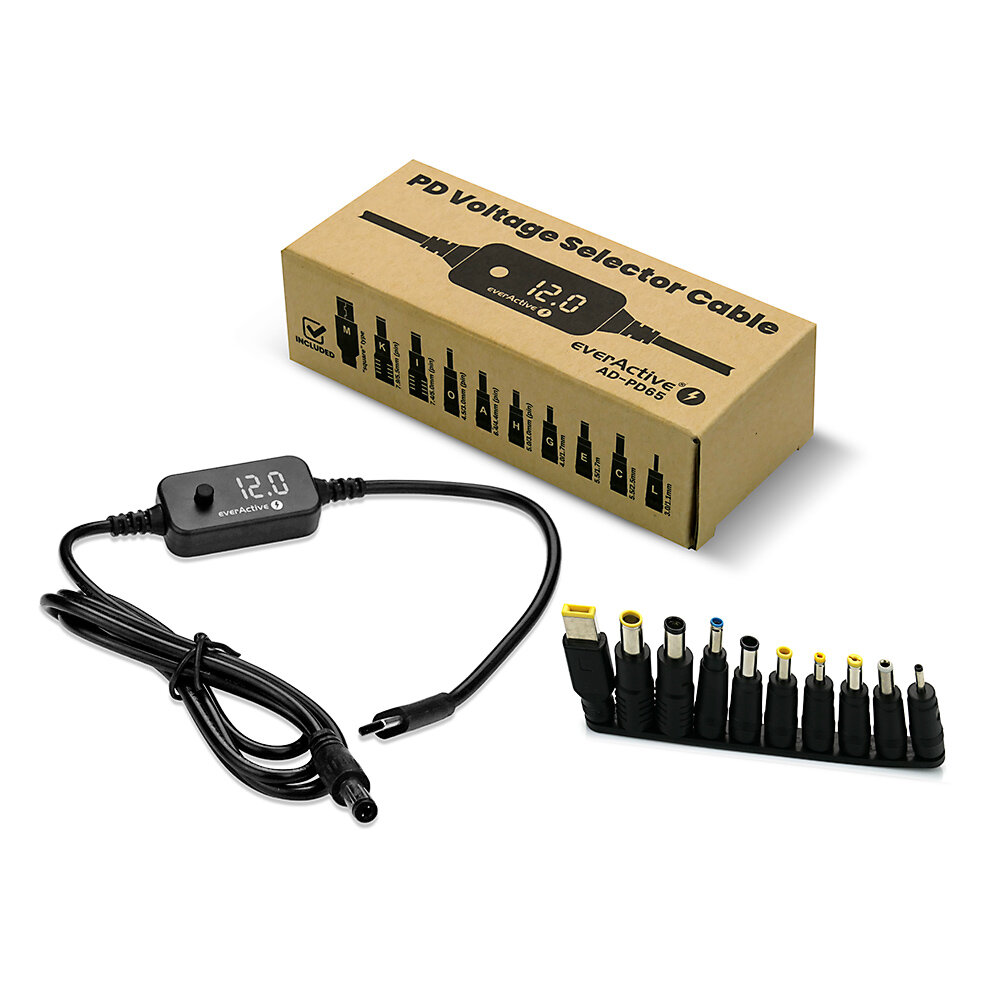

The set includes:

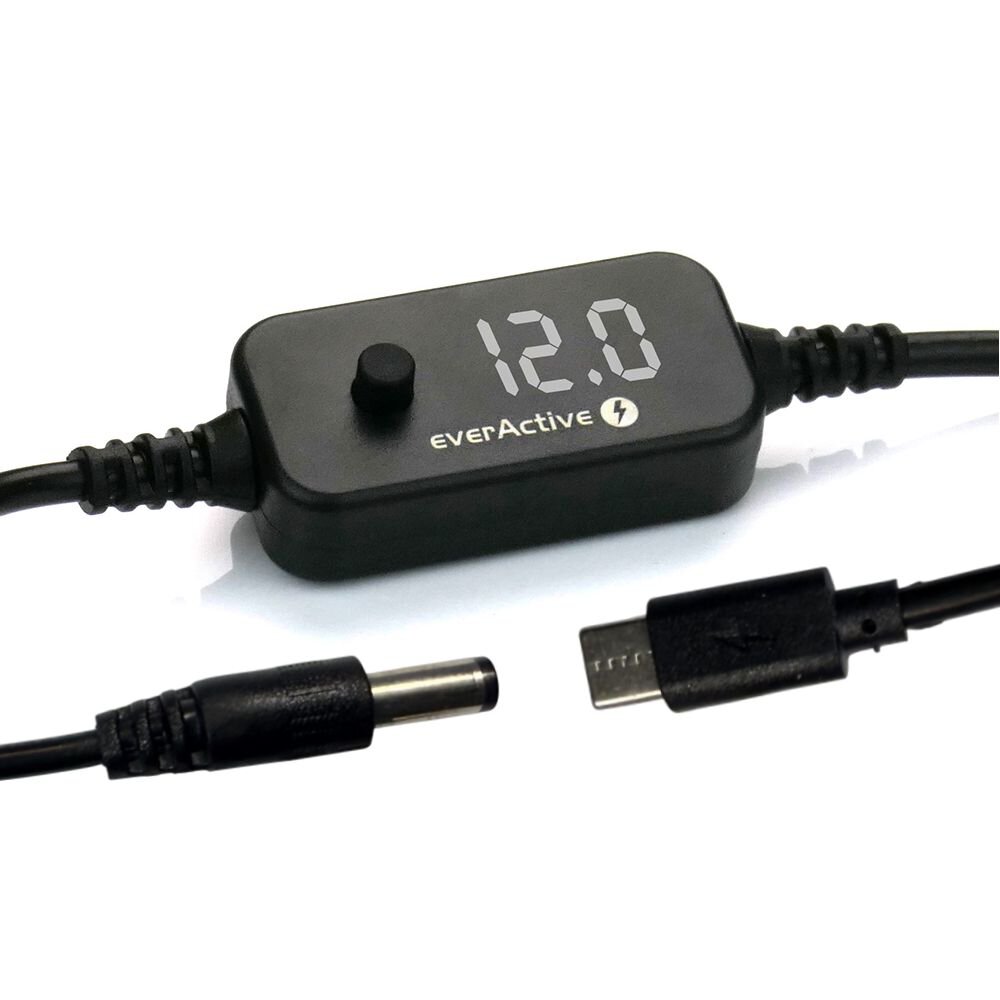

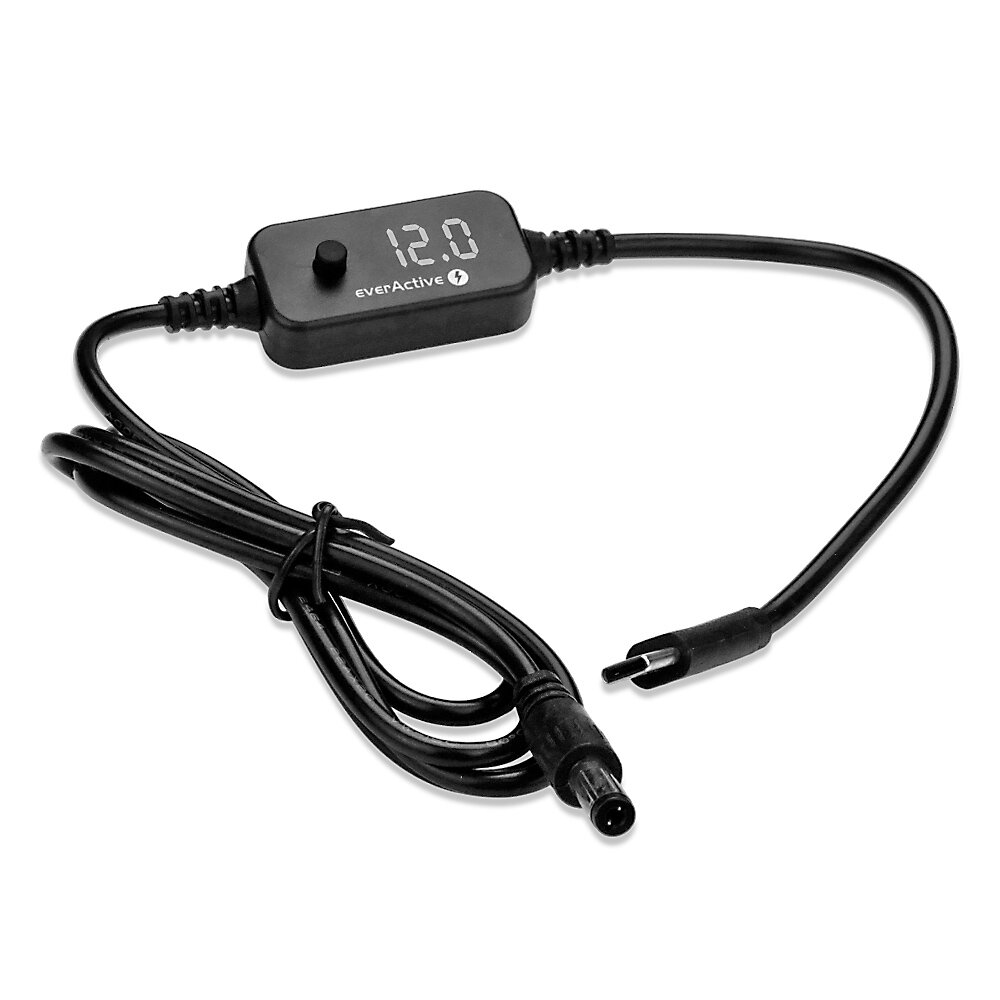

• AD-PD65 cable with LED display and voltage control
• 10 DC adapters:
  • M – for Lenovo™ (square type plug)
  • K – for Lenovo™ (7.9×5.5mm round with pin)
  • I – for HP™ & Dell™ (7.4×5.0 mm with pin)
  • O – for HP™, Dell™ & Asus™ (4.5×3.0 mm with pin)
  • A – for Sony™, Fuji™, Samsung™ & LG™ (6.4×4.4 mm with pin)
  • C – universal, m.in. Lenovo™, Asus™, Toshiba™ (5.5×2.5 mm)
  • G – for Lenovo™ & Dell™ (4.0×1.7 mm)
  • H – for Samsung™ (5.0×3.0mm with pin)
  • E – for Acer™ (5.5×1.7 mm)
  • L – for Acer™ & Samsung™ (3.0×1.1 mm)
• User manual in Polish

The AD-PD65 is the perfect solution for people who often travel, work in the field or simply value order and functionality. One adapter to replace a stack of power supplies – it couldn't be simpler.
